Urology operating table A301

radiologyorthopedicgynecological

Overview

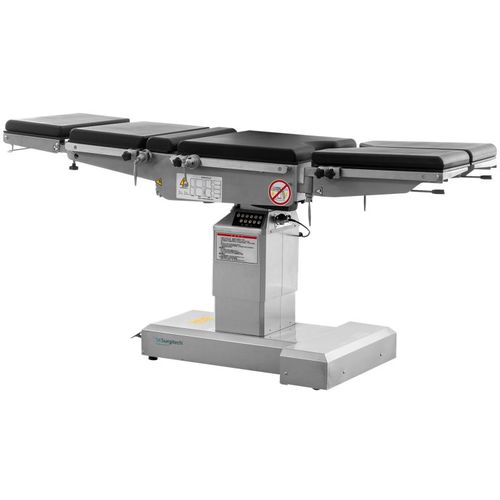

The A301 electric operating table is an imaging-compatible surgical table for multidisciplinary operating rooms. It provides 350 mm longitudinal horizontal sliding for C-arm access, electric multidirectional positioning, a manual kidney bridge, and a detachable leg plate. Suitable for orthopaedics, urology, gynaecology and image-guided procedures.

Construction & materials
The base is fabricated from high-thickness 304 stainless steel with seamless robotic welding. The tabletop is high-strength phenolic resin and radiolucent. The table includes a waterproof mattress, imported gas-spring assisted head plate and gas-spring detachable leg plate for precise positioning.

Key functions & features

• 350 mm horizontal sliding for C-arm and X‑ray access; radiolucent tabletop material
• Electric height adjustment and multidirectional section positioning
• Manual kidney bridge operated from head-side rocker (110 mm elevation)
• Imported gas-spring head plate and gas-spring detachable leg plate for stable adjustments
• Dual control system: hand controller and base column control panel with LCD display
• Pedal brake: press to release inner castors for movement; lift to retract castors and lock table
• Waterproof mattress suitable for routine OR turnover
• Battery backup supporting approximately 80–120 full operation cycles (usage dependent)

Clinical applications

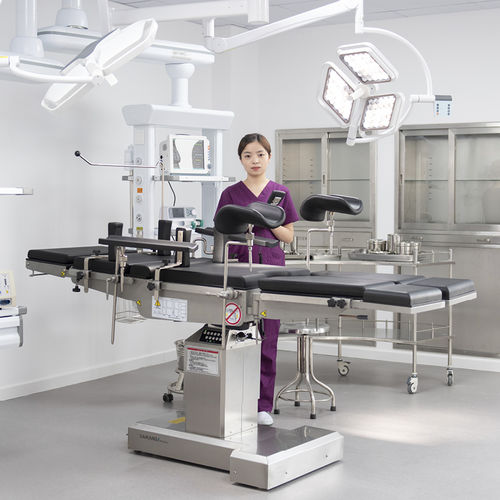

The A301 is designed as a central surgical platform in imaging-assisted ORs and integrates with surgical lighting, ceiling pendants, patient monitors, anaesthesia equipment and OR trolleys. It is appropriate for new hospital projects, OR renovation, tenders and distributor supply.

Technical parameters
Length/Width: 2000 × 555 mm ± 10 mm
Height elevating/lowering: 730–980 mm ± 10 mm
Forward tilt/backward tilt: 24° ± 3° / 24° ± 3°
Left tilt/right tilt: 23° ± 3° / 23° ± 3°
Backrest (up/down): 66° ± 3° / 22° ± 3°
Head section (up/down): 30° ± 3° / 90° ± 3°
Leg section (up/down): 90° ± 3° / 90° ± 3°
Leg section outward: 90° ± 3°
Kidney bridge: 110 mm ± 5 mm
Horizontal sliding: 350 mm ± 5 mm

Technical configuration / accessories (example)

• Anesthesia screen: 1 unit
• Shoulder supports: 1 pair
• Arm rests: 1 pair
• Lumbar supports: 1 pair
• Leg supports: 1 pair
• Foot plates: 1 pair

Notes
Control redundancy (hand controller + base panel) improves OR safety and continuity. Battery backup maintains function during temporary power interruptions. Accessories and final configuration are project-dependent and can be supplied per order.
