Urology operating table A302

orthopedicradiologyelectric

Overview

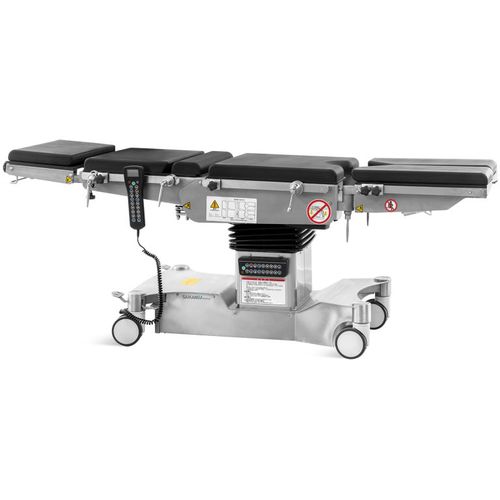

The A302 electric operating table is an imaging-compatible surgical table for orthopaedic, spinal, trauma and image-guided procedures. It integrates one‑button flexion/reverse flexion, 350 mm longitudinal sliding for C-arm access, electric leg section, manual kidney bridge, dual controls and battery backup to support continuity during temporary power interruption.

Main features

• 304 stainless steel base with seamless robotic welding for stable structure and ease of cleaning in clinical environments
• Phenolic resin tabletop offering radiolucency and high strength for C-arm/X-ray compatibility
• 350 mm longitudinal sliding to facilitate intraoperative imaging access
• One-button flexion and reverse flexion for rapid patient positioning
• Electric leg section: up/down folding and removable for flexible lower-limb positioning
• Gas-spring head section for smooth manual head adjustment
• Manual kidney bridge operated from head-side rocker for localized elevation in urology/abdominal procedures
• Waterproof polyurethane foam mattress with seamless surface and buckle fixation for quick removal and cleaning
• HAION castors for smooth, quiet movement and secure locking during OR setup
• Dual control system: hand controller with LCD and backup base-column control panel
• Battery backup supporting approximately 80–120 full cycles (usage dependent)
• Standard accessories available: armrests, shoulder supports, lumbar supports, leg supports, foot plates, anesthesia frame

Applications / procurement highlights
Designed to serve as a single-table solution for routine surgery and imaging-assisted workflows in hospitals and surgical centres. Procurement considerations include integration with existing C-arm workflows, local voltage and medical interface requirements, consolidated documentation and logistics for international delivery.

Technical parameters
Length/Width: 2000 × 555 mm ± 10 mm
Height elevating/lowering: 690–990 mm ± 10 mm
Forward tilt/backward tilt: 24° ± 3° / 24° ± 3°
Left tilt/right tilt: 23° ± 3° / 23° ± 3°
Backrest (up/down): 68° ± 3° / 22° ± 3°
Head section (up/down): 33° ± 3° / 90° ± 3°
Leg section (up/down): 18° ± 3° / 85° ± 3°
Leg section outward: 90° ± 3°
Kidney bridge: 110 mm ± 5 mm
Horizontal sliding: 350 mm ± 5 mm
One-button flexion/reverse flexion: 220° ± 3° / 100° ± 3°

Included configuration (example)

• Anesthesia screen: 1 unit
• Shoulder supports: 1 pair
• Arm rests: 1 pair
• Lumbar supports: 1 pair
• Leg supports: 1 pair
• Foot plates: 1 pair

Technical specifications

• Model: A302 (SKL-A)
• Base material: 304 stainless steel with seamless robotic welding
• Tabletop: phenolic resin (radiolucent, high strength)
• Mattress: waterproof polyurethane foam, removable by buckle
• Sliding range: 350 mm longitudinal sliding for imaging
• Kidney bridge travel: 110 mm ± 5 mm (manual)
• Height range: 690–990 mm ± 10 mm
• Flexion/reverse flexion: 220° / 100° (one-button)
• Battery backup: supports ~80–120 full cycles (usage-dependent)
• Controls: hand controller (LCD) + base column control panel
