Radiology operating table A106-5

neurosurgeryuniversalorthopedic

Overview

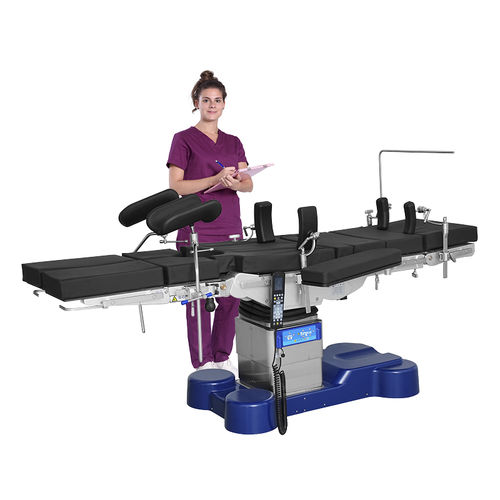

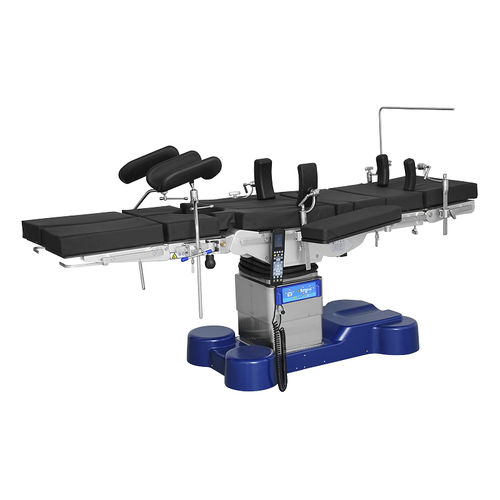

The A106-5 electric-hydraulic operating table is a multidisciplinary OR table designed for procedures requiring imaging access and heavy payloads. It provides electro-hydraulic positioning with microcomputer control, a carbon-fiber X‑ray translucent tabletop and modular sections to support orthopedics, neurosurgery, spinal and image-guided procedures.

Key features

• Electro-hydraulic drive with microcomputer control for smooth, stable adjustments
• Carbon-fiber X‑ray translucent tabletop compatible with intraoperative imaging
• 300 mm longitudinal horizontal sliding for imaging alignment
• Electric kidney bridge with 100 mm ± 10 mm travel
• Electric brake and 100 mm medical-grade polyurethane casters for OR mobility and locking
• 8 groups of preset posture memory for one-click positioning of common surgical setups
• Visual hand controller with LCD showing functions and battery status; bilingual Chinese–English menu
• Multiple control options: backup panel, wired LCD controller, optional wireless Bluetooth LCD controller, optional foot pedal

Design & materials
The frame is constructed from aluminum alloy and 304 stainless steel for structural strength and corrosion resistance. Surface treatment uses electrostatic powder coating. The base is a one-piece vacuum-molded design to facilitate cleaning and OR hygiene maintenance.

Patient comfort & support
The modular pressure-relief mattress uses sealed polyurethane memory foam that is anti-static, leak-proof and X‑ray transparent to reduce pressure during long procedures and remain compatible with imaging.

Tabletop modularity & usability
The tabletop is modular with interchangeable head, back and leg sections and automatic section recognition. Configurations support dual head sections and dual articulated leg sections for complex positioning.

Controls & workflow
Preset positions include horizontal, flexed, extended and beach-chair. Customizable memory positions standardize repeated setups and improve OR workflow efficiency.

Accessories / configuration

• Anesthesia screen: 1 unit
• Shoulder supports: 1 pair
• Arm rests: 1 pair
• Lumbar supports: 1 pair
• Leg supports: 1 pair

Technical parameters (table)

• Model: A106-5
• Tabletop dimensions: 2150 × 550 mm ± 10 mm
• Height range: 600–1100 mm ± 10 mm
• Longitudinal sliding: 300 mm ± 10 mm
• Kidney bridge (electric): 100 mm ± 10 mm
• Forward/backward tilt: 30° ± 3° / 30° ± 3°
• Left/right tilt: 22° ± 3° / 22° ± 3°
• Backrest range: up to 85° / down to 45° ± 3°
• Head section range: up to 50° / down to 90° ± 3°
• Leg section range: up to 80° / down to 90°; outward 90° ± 3°
• Weight capacity: 360 kg
• Tabletop material: carbon-fiber X‑ray translucent panel
• Construction: aluminum alloy + 304 stainless steel
• Mobility: 100 mm polyurethane medical casters; electric brake
• Controls: LCD visual hand controller (bilingual), wired and optional wireless controllers, foot pedal option
• Memory: 8 posture memory groups; one-click presets
• Modularity: interchangeable head/leg sections with automatic recognition; dual head and dual articulated leg support

Applications
Intended for use in advanced operating rooms and hybrid ORs for orthopedics, neurosurgery, spinal surgery and other procedures requiring intraoperative imaging.
