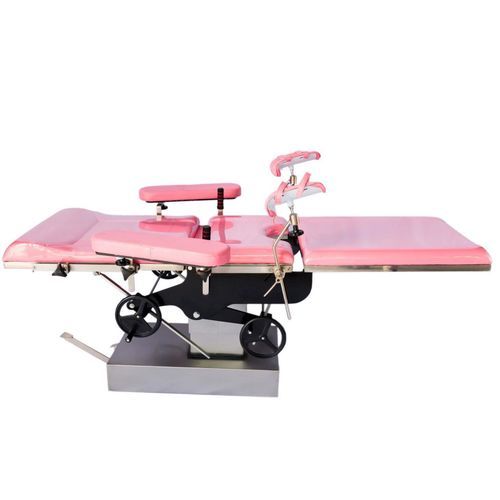

Gynecological operating table SXS2002-C

hydraulicmechanicaladjustable height

Overview
SXS2002-C by Suxin is a manual hydraulic gynecological operating table designed for gynecological examination, surgical procedures and obstetric delivery in hospitals and maternity units. The table combines hydraulic lifting with worm/gear/rack mechanisms for tilting and back folding.

Key Features

• Manual hydraulic lifting system for vertical adjustment.
• Trendelenburg and reverse Trendelenburg plus back folding actuated via worm, gear and rack transmission.
• Adjustable motions can be rotated and locked within defined limits for patient positioning.
• Base and shields made of stainless steel for ease of cleaning and infection control.
• Detachable leg supports to facilitate access during procedures.

Product Options / Configurations

• Standard table size: 1800 × 600 mm; alternative configurations up to 2000 × 600 mm available.
• Standard table height: 600 mm; other height configurations (e.g. min. 700 mm) may be offered.
• Lifting stroke: standard 250 mm (other strokes such as 300 mm may be available).
• Mattress colors: customizable.
• Construction: stainless steel; power coating treatment available.
• Certificates: CE, ISO13485, ISO9001.

Technical Details

• Model: SXS2002-C
• Brand: Suxin
• Table size (L×W): 1800 × 600 mm (other configurations possible)
• Table height (standard): 600 mm
• Lifting stroke: 250 mm
• Back plate up folding angle: ≥60°
• Back plate down folding angle: ≥7°
• Trendelenburg / Reverse Trendelenburg angle: ≥25°
• Drive system: Manual hydraulic; worm, gear and rack transmission for tilt and folding motions
• Material: Stainless steel (power coating treatment available)
• HS code: 9402900000
• Certifications: CE, ISO13485, ISO9001

Accessories / Basic Kit

• Protective cover — 1 pc
• Armrests — 1 pair
• Handles — 1 pair
• Leg supports — 1 pair
• Mattress — 1 set

Installation & Maintenance

• Installation and commissioning must be performed by qualified personnel according to facility procedures.
• Inspect adjustment mechanisms before each use to ensure correct function and locking.
• Clean and disinfect surfaces following facility protocols and manufacturer instructions.
