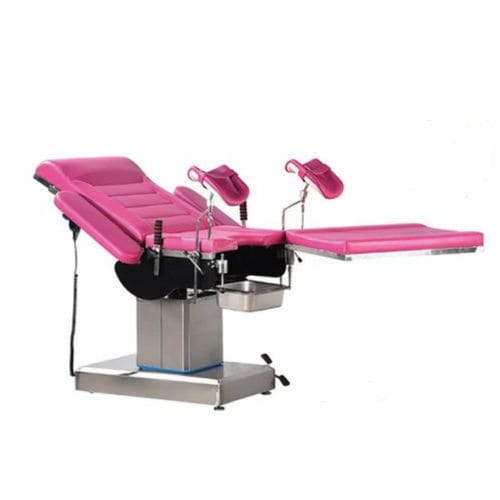

Delivery bed SXD8802-B

electricheight-adjustable3-section

Product overview
SXD8802-B electric obstetric table integrates advanced technologies for obstetric and gynecological procedures, providing powered adjustments for delivery, examination and surgical positioning.

Key features

• Electric actuators from a world‑renowned manufacturer drive table lifting, Trendelenburg/reverse Trendelenburg and back‑plate folding with low noise and stable performance.
• Concealed movable auxiliary table; seamless mattress joint for efficient clinical access.
• Base can be fixed or moved via foot control; mute casters with front brake enable secure positioning.
• All rails, platform panels and waste basin are stainless steel for easy cleaning and disinfection.
• Mattress: 5 cm memory foam, corrosion‑resistant, antibacterial and anti‑static.
• Optional high‑performance rechargeable battery (approx. 50 procedures per charge) and AC power supply for uninterrupted operation.
• Three‑section design: back plate, seat plate and auxiliary table.

Technical parameters

• Table size: 1950×600 mm
• Height (minimum): 690 mm
• Mattress thickness: 5 cm (memory sponge)
• Height range including mattress: 690–940 mm
• Height range excluding mattress: 640–890 mm
• Lifting stroke: 250 mm
• Trendelenburg angle: ≥20°
• Reverse Trendelenburg angle: ≥20°
• Back plate folding: ≥60°/30°
• Power supply: 220–240V, 50/60Hz
• Load capacity: 250 kg

Configuration (No | Accessory name | Qty | Unit)

• 1 | Table body | 1 | set
• 2 | Mattress | 1 | set
• 3 | Motor | 3 | pcs
• 4 | Anesthetic screen | 1 | set
• 5 | Hand support | 2 | pcs
• 6 | Leg support | 2 | pcs
• 7 | Hand remoter | 1 | pc
• 8 | Handle | 2 | pcs
• 9 | Power supply cable | 1 | pc
• 10 | Dirty base | 1 | pc
• 11 | Operation manual | 1 | set

Certifications

• Production license: 苏食药监械生产许20080066号
• Product registration: 苏械注准20172542333

Maintenance and compliance

• Designed for routine clinical cleaning and maintenance; stainless steel surfaces allow effective disinfection.
• Manufacturer provides installation and after‑sales service.
