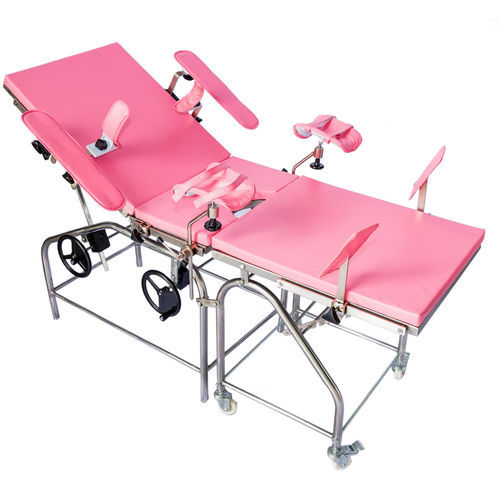

Gynecological examination table SX3B

adultmanualfolding

Product overview
This obstetric delivery table is intended for gynecological examinations, surgical procedures and childbirth in hospitals and clinics. Adjustments of the back and leg sections are made manually via screw mechanisms. The frame is fabricated from stainless steel. The mattress is 4 cm thick, removable and washable. A plastic dirt basin is provided.

Basic information

• Model: SX3B
• Brand: Suxin
• HS code: 9402900000

Technical parameters
Table size: 1900 (±20) × 500 (±20) mm
Height: 750 mm
Seat plate folding: ≥10°/90°
Back plate folding: ≥70°/30°
Dirt basin: Plastic
Mattress thickness: 4 cm, detachable and washable
Material: Stainless steel frame
Maximum load capacity: 150 kg

Configuration / Accessories

• Table body — Qty: 1 — Unit: set
• Mattress — Qty: 1 — Unit: set
• Handles — Qty: 2 — Unit: pcs
• Leg supports — Qty: 2 — Unit: pcs
• Dirt basin — Qty: 1 — Unit: pc
• Operation manual — Qty: 1 — Unit: set

Technical specifications

• Intended use: gynecological exam, operation and parturient delivery
• Adjustment type: manual screw control for back and leg plates
• Surface cleaning: mattress removable and washable; stainless-steel surfaces suitable for facility disinfection
• Dimensions and load as listed in Technical parameters
