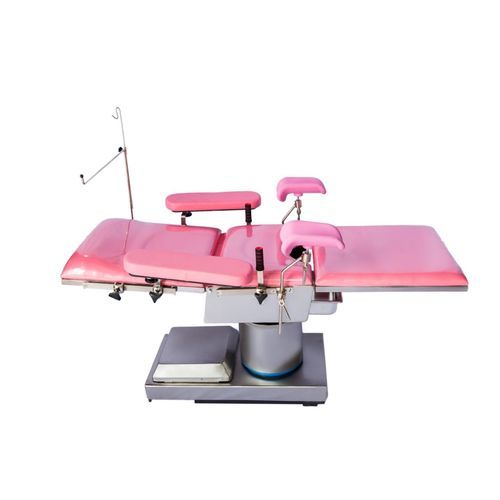

Delivery bed SXD8805-B

electrichydraulicTrendelenburg

Product overview
The SXD8805-B electro-hydraulic obstetric table is engineered for labor, delivery and postpartum care. It offers motorized height adjustment and multi-section positioning to support vaginal delivery, examinations and minor obstetric procedures in delivery rooms and maternity units.

Key features

• Electro-hydraulic drive for height, Trendelenburg/reverse Trendelenburg and back-section adjustments, operated via a low-noise, stable hand control.
• Embedded movable auxiliary table to facilitate clinical access; seamless mattress design for hygiene.
• Base fixation or mobility controlled by hand controller; front brake system for quick locking.
• All shields, platform panels and dirty basins in high-grade stainless steel for easy cleaning and disinfection.
• Foam sponge mattress: corrosion-resistant, antibacterial and pressure-sore reducing.
• Quiet casters for smooth movement.
• Optional high-performance rechargeable battery supports up to fifty procedures; AC power supply standard.
• Three-section structure: back plate, seat plate and auxiliary table for flexible positioning.

Technical specifications

• Overall size: 1900 (±20) × 600 (±20) mm
• Minimum height: 700 (±20) mm
• Lifting travel: 250 mm
• Trendelenburg angle: ≥25°
• Reverse Trendelenburg angle: ≥25°
• Back plate up-folding: ≥70°
• Power supply: 220 V, 50 Hz
• Load capacity: 135 kgs

Standard configuration
No | Accessories name | Qty | Unit

• 1 | Table body | 1 | set
• 2 | Mattress | 1 | set
• 3 | Motor | 3 | pcs
• 4 | Anesthetic screen | 1 | set
• 5 | Hand support | 2 | pcs
• 6 | Leg support | 2 | pcs
• 7 | Hand remote | 1 | pc
• 8 | Handle | 2 | pcs
• 9 | Power supply cable | 1 | pc
• 10 | Dirty base | 1 | pc
• 11 | Operation manual | 1 | set

Applications

• Vaginal delivery and birthing assistance
• Postpartum recovery and monitoring
• Obstetric examinations and minor procedures

Manufacturer / Brand
Jiangsu Suxin Medical Equipment Co., Ltd.
