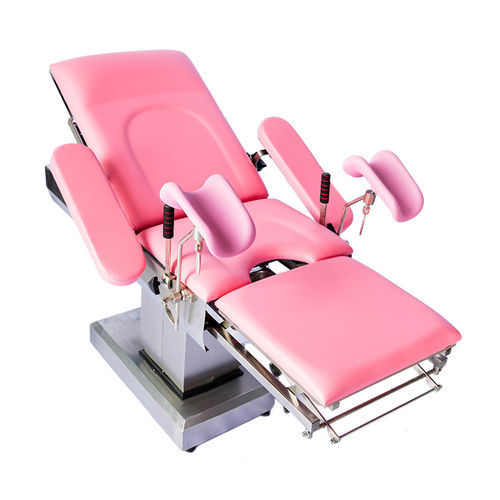

Gynecological operating table SXD8802-B-I

electricadjustable heighttilting

Product description
The SXD8802-B electric obstetric operating table integrates advanced functions for delivery, gynecological procedures, diagnosis and examination, with provision for emergency abdominal procedures. The table is composed of three sections (back plate, seat plate and auxiliary table) and is designed for clinical use in delivery rooms and gynecological theatres.

Unique features

• Electric adjustment of height, Trendelenburg, reverse Trendelenburg and back plate tilt via hand remote (foot switch optional); low noise and stable performance.
• Embedded movable auxiliary table for convenient access; seamless mattress fixed to the platform for easy cleaning.
• Base fixation or movement controlled by foot controller.
• All shields, platform panels and dirt basin are made of high-quality stainless steel for easy cleaning and disinfection.
• Mattress made of foam sponge: easy to clean, corrosion-resistant, durable, antibacterial and anti-static to reduce risk of pressure injuries.
• Quiet casters for smooth relocation.
• Front brake system to lock the table in position.
• Optional high-performance rechargeable battery (approx. fifty operations per charge); AC power supply available to ensure continuous operation.
• Three-section construction: back plate, seat plate and auxiliary table.

Technical parameters

• Table size: 1900 (±20) × 600 (±20) mm
• Minimum height: 650 (±20) mm
• Lifting stroke: 250 mm
• Trendelenburg angle: ≥25°
• Reverse trendelenburg angle: ≥25°
• Back plate up folding: ≥70°
• Power supply: 220 V, 50 Hz
• Load capacity: 200 kg

Configuration

• 1. Table body — 1 set
• 2. Mattress — 1 set
• 3. Motor — 3 pcs
• 4. Anesthetic screen frame — 1 set
• 5. Hand support — 2 pcs
• 6. Leg support — 2 pcs
• 7. Hand remote (foot switch) — 1 pc
• 8. Handle — 2 pcs
• 9. Power supply cable — 1 pc
• 10. Dirty base — 1 pc
• 11. Operation manual — 1 set
