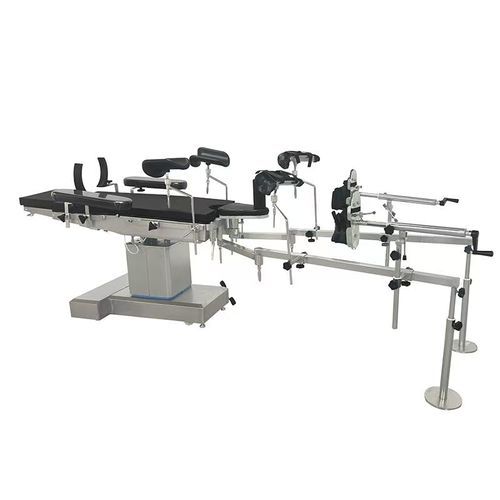

Orthopedic operating table SXD8804-A

radiologyelectricadjustable height

Product overview

• High‑grade 304 stainless steel electric operating table with traction frame, model SXD8804-A.
• Tabletop size: 2100 × 500 mm (±20 mm); height range: 750–1050 mm (±20 mm).
• Minimum order quantity: 1 pc.

Key features

• Designed for a wide range of surgical specialties, including orthopedic procedures.
• Radiolucent imported acrylic tabletop compatible with X‑ray C‑arm imaging.
• Electric adjustments: lateral tilt, Trendelenburg/reverse Trendelenburg, back/head/leg articulation, and horizontal sliding.
• T‑base on swivel castors for stable positioning and mobility.
• Compatible with traction frame set; dedicated connection points provided.
• Memory sponge mattress, removable and easy to clean and disinfect.
• International standard side rails for mounting accessories.
• Built‑in emergency battery backup (2 pcs) to allow operation for at least 2–4 hours in case of power failure.

Technical parameters
Table size: 2100(±20) × 500(±20) mm
Table height: 750(±20) - 1050(±20) mm
Lateral tilt: ≥20° (electrical)
Trendelenburg / reverse Trendelenburg: ≥25° (electrical)
Battery autonomy: ≥2–4 hours
Back plate up/down folding: ≥80° / 30°
Head plate adjustment: ≥30°–90°
Kidney bridge adjustment: ≥120 mm
Electric horizontal sliding: ≥300 mm
Leg plate (up/down/outwards): ≥15° / 90° / 90°

Standard configuration

• 1 × Table body — set
• 1 × Mattress — set
• 6 × Motors — sets
• 1 × Anesthetic screen — set
• 2 × Hand supports — pcs
• 2 × Leg supports — pcs
• 2 × Kidney bridges — pcs
• 1 × Hand remote — pc
• 2 × Battery system — pcs
• 1 × Operation manual — set

Technical specifications

• Model: SXD8804-A
• Brand: SUXIN MEDICAL
• HS code: 940290
• Tabletop material: imported acrylic plate with radiolucent property
• Frame material: High 304 stainless steel
• Base: T‑base on swivel castors
• Mattress: memory sponge, removable and disinfectable
• Accessories: international standard side rails; multiple functional accessories available
• X‑ray C‑arm compatibility; connectors for traction frame set
• Electric functions: lateral tilt, Trendelenburg/reverse, back/head/leg adjustments, horizontal sliding (≥300 mm)
• Battery: built‑in emergency power supply, 2 pcs included, autonomy ≥2–4 hours
