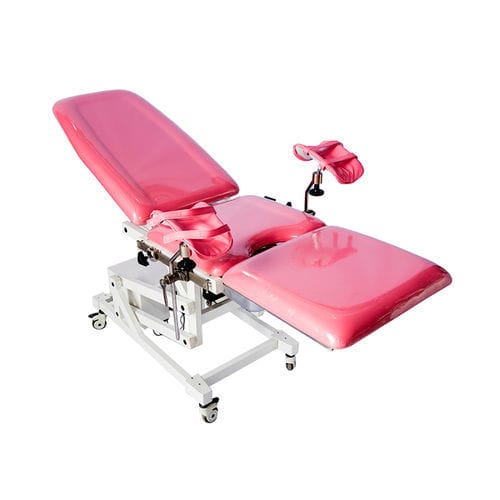

Gynecological operating table SXD8802-A-II

orthopedicophthalmicENT

Product overview
Electric obstetric table suitable for obstetrics and a wide range of surgical procedures (head, neck, thorax, abdomen, perineum, limbs), including ophthalmology, ENT and orthopedics. Designed for clinical environments requiring adjustable positioning and reliable operation.

Key features

• Multi-function design with compact, flexible operation.
• Hand-held control unit enabling precise linear and rotational movements; waterproof cover to protect against fluids and static.
• Main structure in stainless steel for easy cleaning and resistance to contamination.
• Foam sponge mattress: easy to clean, corrosion-resistant, antibacterial and anti-static to reduce risk of pressure sores.
• Quiet casters for smooth mobility and front brake for secure locking.
• Seat plate foldable up to ≥15°; back plate up fold ≥75°, down fold ≥6°.
• Detachable and rotatable leg plate; auxiliary table detachable or rotary for procedural flexibility.
• Optional foot controller and optional high-performance rechargeable battery (backup for approx. 50 operations) with AC mains as primary power.
• Complies with ISO 9001, ISO 13485 and CE standards.

Technical specifications

• Overall size: 1850 (±20) × 600 (±20) mm
• Height range: 550 mm – 1000 mm
• Lifting stroke: 450 mm
• Seat plate up folding: ≥15°
• Back plate up fold: ≥75°; down fold: ≥6°
• Leg plate: detachable and rotatable
• Dirt basin: stainless steel
• Maximum load capacity: 200 kg
• Power: AC mains; optional rechargeable battery for backup
• Standards: ISO 9001, ISO 13485, CE

Standard configuration

• Table body — 1 set
• Mattress — 1 set
• Motor — 1 set
• Anesthetic screen — 1 pc
• Leg support — 2 pcs
• Handle — 2 pcs
• Dirt basin — 1 pc
• Operation manual — 1 set

Options & accessories

• Rechargeable battery (high-performance)
• Foot controller
• Additional leg supports and accessories on request
