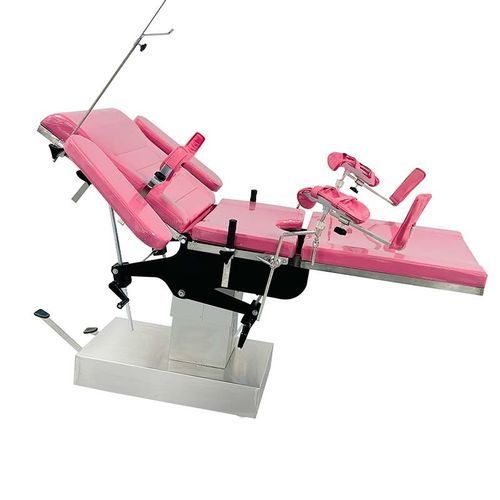

Gynecological examination table SXS2002-C

minor surgeryfor pregnant womenmanual

Product description
SXS2002-C is designed for gynaecological examination, surgical procedures and parturient delivery in hospitals and clinics. The unit is manually operated with a hydraulic lifting system and offers adjustable backrest and Trendelenburg functions suitable for diagnostic and minor operative workflows.

Options / Selections

• Size: 1800 × 600 mm
• Color: Customizable mattress colors
• Material: Stainless steel
• Table height: 600 mm
• Back plate up folding: ≥60°
• Back plate down folding: ≥7°
• Certificate: CE / ISO13485 / ISO9001

Technical table

• Type and model: Gynaecological Examination Bed With Stirrups / Manual Gynecological Chair — SXS2002-C
• Material: Stainless steel (power coating treatment available)
• Table size: 1800 × 600 mm
• Table height: 600 mm
• Lifting travel/motion: 250 mm
• Back plate up folding angle: ≥60°
• Back plate down folding angle: ≥7°
• Trendelenburg & reverse Trendelenburg: ≥25°
• Certificates: CE / ISO13485 / ISO9001

Features

• Hydraulic lifting system provides stable vertical adjustment; worm, gear and rack transmission controls Trendelenburg/reverse Trendelenburg and back folding motions.
• All adjustable positions can be rotated and locked securely within defined limits for procedural stability.
• Base and protective shield constructed from stainless steel for ease of cleaning and infection control.

Model & Certifications

• Model: SXS2002-C
• Brand: Suxin
• Intended use: Gynaecological examination, minor procedures and delivery support
• Certificates: CE / ISO13485 / ISO9001
