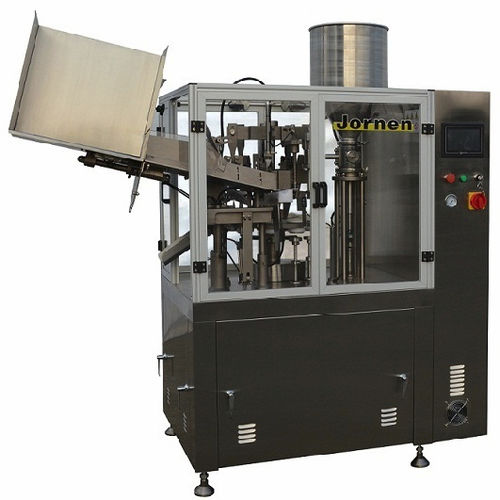

Tube filler NF60A
automaticrotaryfloor-standing

tube filler
tube filler
tube filler
tube filler
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
rotary
Configuration
floor-standing
Product applications
for viscous liquids
Container type
for tubes
Application domain
for the pharmaceutical industry, for the cosmetics industry
Options
with capping system, sealing
Production capacity

60 p/min

Weight

850 kg
(1,873.9 lb)

Length

1,900 mm
(74.8 in)

Width

1,100 mm
(43.31 in)

Height

1,800 mm
(70.87 in)

Description

NF60A Automatic Tube Fillers are designed and engineered to produce outstanding quality and precision tube filling and sealing of plastic tubes with the output of up to 60 tubes per minute. This machine is widely used in pharmaceutical, food, household chemical and cosmetic, etc., industries. ·Automatically completes the actions of tube loading, washing, positioning, filling, sealing, coding, trimming, and discharging tubes. ·Tube positioning is controlled by BANNER Photoelectric Sensor ·Equipped with Temperature Control and Separate Cooling System ·No Tube, No Fill — Alarm will go off! ·Stainless Steel Construction and all parts contacted with material are high-quality 316L stainless steel to meet GMP standard ·Double Jacketed Temperature Control Hopper and Agitator are available as options ·Suitable for all kinds of plastic composite pipes. ·Provides high filling accuracy (±1%) for an extensive range of products, regardless of viscosity. ·Mechanical drive system is easy to understand and maintain. ·SIEMENS Touch Screen Control Technology ·SIEMENS PLC Control System ·SIEMENS Variable Speed Converter—control production speed ·SIEMENS Electrical Components Main Technical Parameters Dosing range: 5- 200 ml Tube length: 50 – 240 mm Tube diameter: 10 – 50 mm Motor power: 1.1 KW Power for hot air: 3.3 KW Plate: 9 stations

VIDEO
