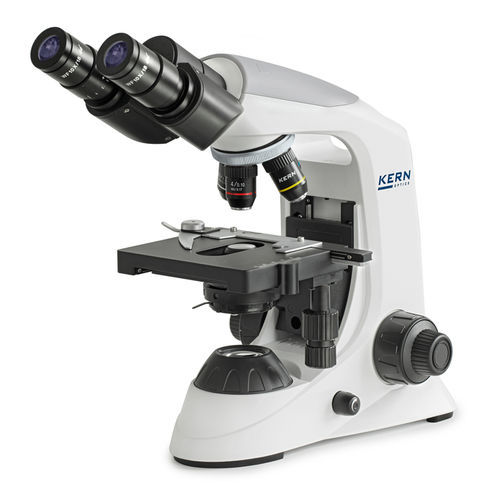

Optical microscope OBE 122

for researchmedicalfor teaching

Overview
The KERN OBE 122 is a compact, ergonomic transmitted‑light compound microscope designed for training, teaching and laboratory use. It features a rear cable storage compartment and can be powered via USB from an external powerbank in addition to the internal plug‑in power supply.

Features

• Infinitely dimmable 3 W LED transmitted illumination for bright, even lighting
• Butterfly lens barrel as standard on binocular and trinocular versions for an optimal viewing angle
• Height‑adjustable Abbe condenser NA 1.25 with aperture diaphragm for controlled light concentration
• Fully equipped mechanical cross stage with coaxial coarse and fine focusing on both sides for ergonomic sample handling
• Coaxial coarse and fine focusing with fine drive minimum 0.002 mm
• Wide range of optional eyepieces and objectives available
• Delivery includes dust cover, eye cups and multilingual user manual

Applications

• Primary application areas: Training centres, haematology, sediment analysis, medical practices, veterinary clinics, inpatient/outpatient facilities, health authorities, universities

Applications and samples

• Translucent, thin, high‑contrast, low‑complexity specimens (e.g. plant tissue, stained cells or parasites)

Technical Data
Optical system: Finite
Tube type: Binocular (butterfly lens barrel available for binocular/trinocular)
Ocular magnification: 10x (field 18 mm)
Standard objectives: 4×, 10×, 40× (achromatic)
Nosepiece screw‑in locations: 4
Illumination (transmitted): LED, 3 W, infinitely dimmable
Condenser: Abbe, NA 1.25, height‑adjustable, fixed mounting
Focusing mechanism: coaxial coarse and fine drive; fine drive minimum 0.002 mm
Stage: Fully equipped mechanical cross stage with coaxial drive on both sides
Power: Internal plug‑in power supply; USB power supply via external powerbank possible
Dimensions (W×D×H): 360 × 150 × 320 mm
GTIN/EAN: 4045761235977

Characteristics / Technical specifications

• Optical system: Finite
• Tube: Binocular (butterfly tube standard on binocular/trinocular)
• Eyepiece: 10×, field 18 mm
• Standard objectives: 4×, 10×, 40× (achromatic)
• Nosepiece: 4 screw‑in objective positions
• Illumination: 3 W transmitted LED, continuously dimmable
• Condenser: Abbe NA 1.25 with aperture diaphragm
• Focusing: Coaxial coarse and fine; fine drive min. 0.002 mm
• Stage: Mechanical cross stage, height adjustment and coaxial drive
• Includes: Dust cover, eye cups, multilingual manual
• Dimensions: 360×150×320 mm
• GTIN/EAN: 4045761235977
