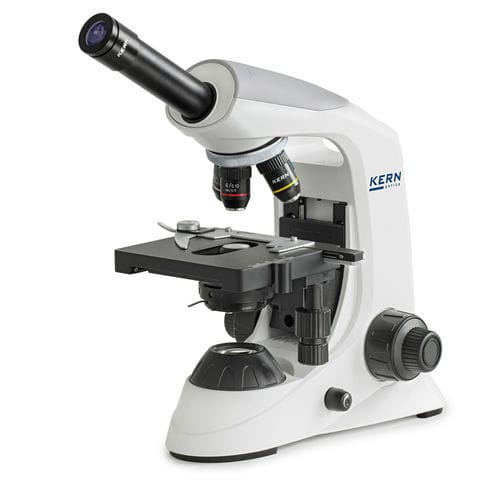

Laboratory microscope OBE 121

medicalfor teachingeducation

Overview

• The OBE 121 is a transmitted-light compound microscope for training, laboratory and clinical use. It features a rear cable storage compartment and can be powered via USB from an external powerbank.
• Infinitely dimmable 3 W LED provides uniform transmitted illumination.
• Butterfly lens barrel (standard on binocular and trinocular models) enables optimal viewing-angle adjustment.
• Height-adjustable, focusable Abbe condenser (NA 1.25) with aperture diaphragm for precise light control.
• Fully equipped mechanical stage with height adjustment; coaxial coarse and fine focusing knobs on both sides for ergonomic operation and rapid sample movement.
• Wide selection of eyepieces and objectives available as accessories.
• Scope of delivery includes dust cover, eye cups and multilingual instructions.

Applications

• Training, haematology, sediment analysis, medical practices, veterinary clinics, inpatient and outpatient facilities, health authorities, training centres and universities.

Typical samples

• Translucent, thin, high-contrast preparations (e.g. plant tissue, stained cells, parasites).

Technical data
Optical system: Finite
Tube type: Monocular
Ocular magnification: 10× (field 18 mm)
Standard objectives: 4×, 10×, 40× (achromatic)
Nosepiece screw-in locations: 4
Illumination (transmitted): 3 W LED, continuously dimmable
Condenser: Abbe, NA 1.25, height-adjustable, aperture diaphragm
Focusing: Coaxial coarse and fine drive; fine drive minimum 0.002 mm
Mechanical stage: Fully equipped, height-adjustable; coaxial drive for sample movement
Power: Mains supply; USB connection allows external powerbank operation
Dimensions (W×D×H): 360×150×320 mm
GTIN / EAN: 4045761235960

Included items

• Dust cover, eye cups, multilingual user instructions. USB connection for external powerbank supply possible.
