Optical microscope OBE 131

laboratorymedicalfor teaching

Overview

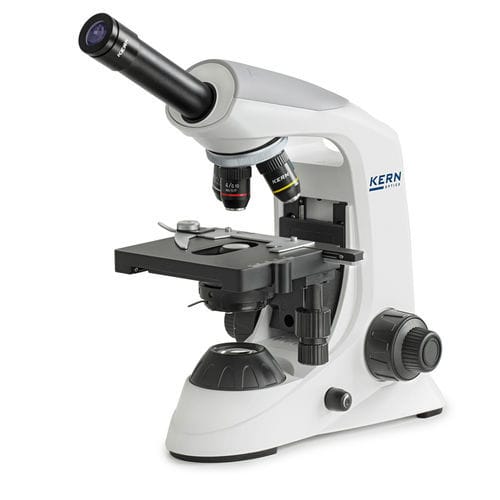

• The KERN OBE 131 is a transmitted-light laboratory microscope designed for routine medical, veterinary and training use. It has a monocular tube (butterfly tube available on binocular/trinocular models) and a rear storage compartment for the power cable.
• USB port supports powering via an external powerbank in addition to mains supply.
• 3 W LED illumination with continuous dimming for uniform transmitted-light contrast.
• Height-adjustable, focusable Abbe condenser (NA 1.25) with iris diaphragm for optimal light concentration.
• Coaxial coarse and fine focusing with minimum fine drive 0.002 mm; focusing knobs on both sides for ergonomic handling.
• Fully equipped mechanical cross stage with height adjustment and rapid sample movement via ergonomic coaxial drive.
• Wide range of eyepieces and objectives available as accessories.
• Scope of delivery includes protective dust cover, eye cups and multilingual user instructions.

Applications

• Primary fields: training and education, hematology, sediment analysis, medical and veterinary practices, inpatient and outpatient facilities, public health authorities, universities.
• Suitable samples: thin, translucent, high-contrast preparations such as plant tissue sections, stained cells and parasites.

Technical Data (table)
Optical system: Finite
Tube type: Monocular
Ocular magnification: 10x
Ocular visual field: 18 mm
Standard objectives: 4×, 10×, 40×, 100×
Lens quality: Achromatic
Nosepiece screw-in locations: 4
Illuminance: Transmitted light
Illumination intensity transmitted light: 3 W (dimmable)
Illumination type transmitted light: LED
Condenser type: Abbe
Condenser - Aperture: 1.25
Condenser - Mounting: fixed (height-adjustable/focusable)
Focusing mechanism: Coaxial coarse and fine drive
Fine drive minimum: 0.002 mm
Dimensions (W×D×H): 360×150×320 mm
GTIN/EAN number: 4045761235991


Included in delivery

• Protective dust cover
• Eye cups
• Multilingual user instructions

Characteristics / technical specifications

• Optical system: Finite
• Tube type: Monocular (butterfly tube standard on binocular/trinocular models)
• Oculars: 10x, field 18 mm
• Standard objectives: 4×, 10×, 40×, 100× (achromatic)
• Illumination: Transmitted-light LED, 3 W, continuously dimmable
• Condenser: Abbe, NA 1.25, height-adjustable and focusable with iris diaphragm
• Focusing: Coaxial coarse/fine drive; fine adjustment 0.002 mm
• Mechanical stage: Cross stage with height adjustment and ergonomic coaxial drive
• Dimensions: 360×150×320 mm
• GTIN / EAN: 4045761235991
