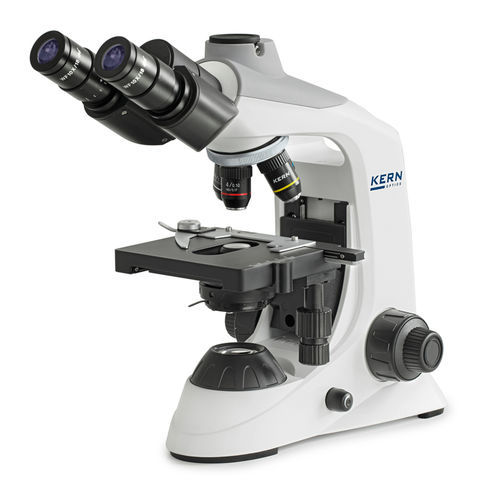

Optical microscope OBE 134

laboratoryfor researchmedical

Overview
The KERN OBE 134 is a versatile compound microscope for schools, training and laboratories, offering trinocular viewing and transmitted LED illumination.

Description

• The KERN OBE 134 features an ergonomic, durable design with a rear storage compartment for the power cable. USB connection allows operation via an external powerbank.
• An infinitely dimmable 3 W LED provides uniform, bright illumination of samples.
• Integrated butterfly (tilting) tube on binocular and trinocular models for an optimal viewing angle.
• Height-adjustable, focusable Abbe condenser NA 1.25 with aperture diaphragm for optimal light concentration.
• Fully equipped mechanical stage with bilateral coarse and fine focusing; ergonomic coaxial drive for rapid sample movement.
• Wide range of eyepieces and objectives available as accessories. Supplied with dust cover, eye cups and multilingual user manual.

Note

• A C‑mount adapter is required to connect a camera (see accessories).

Applications
Main fields of application

• Training centres, haematology, sediment analysis, medical practices, veterinary clinics, inpatient and outpatient facilities, public health authorities, universities.

Applications and samples

• Translucent, thin, high-contrast, low-complexity samples (e.g. plant tissue, stained cells, parasites).

Technical Data
Optical system: Finite
Tube type: Trinocular
Ocular magnification: 10×
Ocular visual field: 18 mm
Standard objectives: 4×, 10×, 40×, 100× (achromatic)
Nosepiece positions: 4 (screw-in)
Illumination: Transmitted light, 3 W (LED), infinitely dimmable
Condenser: Abbe, NA 1.25, height-adjustable, fixed mounting
Focusing mechanism: Coaxial coarse and fine drive
Fine drive minimum: 0.002 mm
Dimensions (W×D×H): 360×150×320 mm
GTIN / EAN: 4045761236011

Features / Technical specifications

• Model: OBE 134
• Optical system: Finite
• Tubus: Trinocular (butterfly/tilting tube integrated)
• Eyepieces: 10×, field Ø 18 mm
• Objectives: 4×, 10×, 40×, 100× (achromatic)
• Nosepiece for 4 objectives (screw-in)
• Transmitted illumination: 3 W LED, continuous dimming
• Abbe condenser NA 1.25 with aperture diaphragm
• Coaxial macro-/fine focusing, fine drive min. 0.002 mm
• Mechanical stage with bilateral adjustment
• Power supply via USB/powerbank possible
• Included: dust cover, eye cups, multilingual manual
