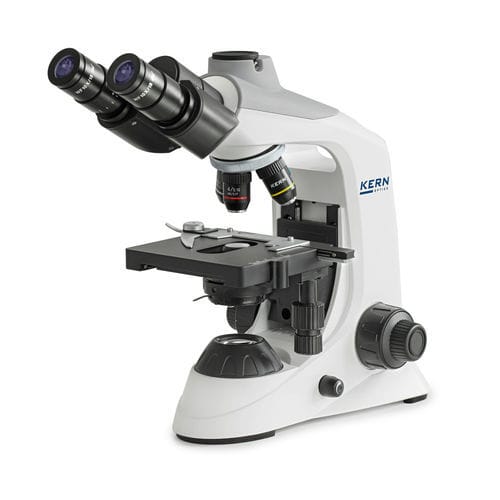

Laboratory microscope OBE 124

medicalfor teachingeducation

Overview
The KERN OBE 124 is an all-round transmitted-light compound microscope designed for schools, training centres and laboratories, combining ergonomic design with practical cable storage and flexible power options.

Key features

• Exclusive dynamic housing design offering robust construction and good ergonomics.
• Rear storage compartment for quick stowage of the power cable; USB interface permits powering via an external powerbank.
• Bright, infinitely dimmable 3 W LED illumination for transmitted-light samples.
• Butterfly tube enabling an ideal viewing angle; integrated as standard on binocular and trinocular models.
• Height-adjustable, focusable Abbe condenser NA 1.25 with aperture diaphragm for excellent light concentration.
• Fully equipped mechanical stage with coarse and fine focusing knobs on both sides; ergonomically designed coaxial drive for rapid specimen movement.
• Wide selection of eyepieces and objectives available as accessories.
• Scope of delivery includes protective dust cover, eye cups and multi-lingual user instructions.

Note

• Please note: A C-mount adapter is required to connect a camera (see accessories).

Applications

• Main fields of application: training, haematology, sediment analysis, medical and veterinary practices, inpatient and outpatient facilities, health authorities, training centres, universities.
• Typical samples: translucent, thin, high-contrast, low-complexity preparations (e.g. plant tissue, stained cells / parasites).

Technical specifications

• Optical system: Finite
• Tube type: Trinocular
• Eyepiece magnification: 10x
• Eyepiece field of view: 18 mm
• Standard objectives: 4×, 10×, 40×
• Objective quality: Achromatic
• Nosepiece screw-in locations: 4
• Illumination: Transmitted light
• Illumination intensity (transmitted light): 3 W
• Illumination type (transmitted light): LED (infinitely dimmable)
• Condenser type: Abbe
• Condenser — Aperture: 1.25
• Condenser — Mounting: fixed
• Focusing mechanism: coaxial coarse and fine drive
• Fine drive minimum: 0.002 mm
• Dimensions (W×D×H): 360×150×320 mm
• GTIN / EAN: 4045761235984
