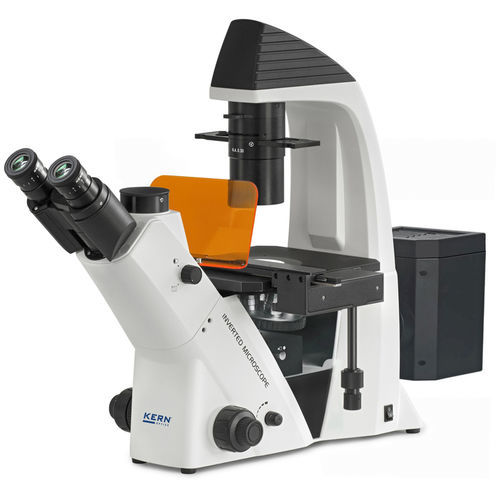

Laboratory microscope OCM 165

for researchfor biologymedical

Short description
The inverted biological laboratory microscope with fluorescence, designed for observation and analysis of cell and tissue cultures.

Description

• Ergonomic, robust design with large working distance suitable for culture flasks, Petri dishes and microplates.
• Infinitely adjustable 30 W halogen transmitted‑light unit for bright‑field illumination.
• Optional Osram 100 W HBO epi‑fluorescence unit (Blue, Green) for fluorescence excitation.
• Abbe condenser (N.A. 0.3) with aperture diaphragm and 72 mm working distance for bright‑field, phase contrast and fluorescence.
• Trinocular tube standard for binocular observation and camera connection (C‑mount adapter required).
• Mechanical stage with specimen holder Ø 110 mm; Petri dish brackets included or available as accessories.
• Coaxial coarse and fine focusing; fine adjustment minimum 0.002 mm.
• Standard objectives: 10×, 20×, 40×, PH 20× (Infinity Plan); 5 screw‑in objective positions.
• Delivery includes dust cover and user manual; additional eyepieces, objectives, holders and phase contrast units available as accessories.

Note

• C‑mount adapter required to attach a camera (see accessories).

Applications

• Research and cultivation of cell and tissue cultures in laboratories and medical facilities.
• Examination of samples in culture vessels (flasks, Petri dishes, microplates), translucent thin low‑contrast specimens (living mammalian cells, tissues), immunofluorescence, FISH, DAPI staining.

Technical Data (table)
Optical system: Infinity
Tube type: Trinocular
Ocular magnifications: 10x
Ocular visual field: 22 mm
Standard objectives: 10×, 20×, 40×, PH 20×
Lens quality: Infinity Plan
Nosepiece screw‑in locations: 5
Illuminance: Reflected light, Transmitted light
Illumination intensity (transmitted light): 30 W
Illumination type (transmitted light): Halogen
Illumination intensity (incident light): 100 W
Illumination type (incident light): HBO
Fluorescent unit: Blue, Green (HBO)
Condenser type: Standard
Condenser - Aperture: 0.3
Condenser - Mounting: fixed
Focusing mechanism: coaxial coarse and fine drive
Fine drive minimum: 0.002 mm
Dimension (W×D×H): 782×304×530 mm
GTIN / EAN number: 4045761263512

Technical specifications

• Design: ergonomic, robust, extremely stable; large working distance.
• Transmitted illumination: infinitely adjustable 30 W halogen.
• Incident/fluorescence illumination: optional Osram 100 W HBO epi unit (Blue, Green).
• Condenser: Abbe N.A. 0.3 with aperture diaphragm; working distance 72 mm.
• Stage and holders: mechanical stage Ø 110 mm; Petri dish brackets available.
• Focusing: coaxial coarse/fine with 0.002 mm fine increment.
• Scope of delivery: dust cover, user manual; accessories optional (C‑mount adapter for camera, objectives, oculars, filters).
