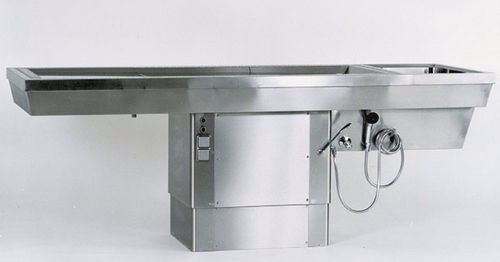

The autopsy table is completely made of stainless steel (material no. 1.4301 – ANSI 304). A 3-piece removeable, perforated work surface makes sure that all harmful vapours are being vacuumed downwards. The work surface is equipped with a high surrounding border, as well as a negative inclination to the waste sieve (detachable). A seamlessly welded basin, 400 x 500 x 200 mm, with a surrounding profile border and an overflow pipe is installed to the end of the table.
A bath with a negative inclination to the drainage channel is located under the perforated work surface. An integrated sprinkler system guarantees that the table is continuously sanitized. All power connections, including the air duct, are built into the base and can be easily accessed by means of an inspection opening. The table is to be connected to a ventilation system provided by the customer.
Central support column with 2 inspection openings
Knee-operated mixing tap for cold and warm water
3 m shower hose with hand Sprinkler
2 splash proof electrical outlets
Regulator valve for integrated sprinkler System
3-piece work surface with large waste basin/sieve insert
The safety requirements for drinking water as per DIN 1988 part 4 and EN DIN 1717 are to be provided by the customer
Dimensions W/D/H: 2600 x 850 x 850 mm
Voltage:230 Volt / 1 Ph / 50 Hz
Exhaust air capacity:min. 1000 m³/h
Carrying capacity:300 kg
