Mortuary cooling unit SP-KT 220

mortuary cooling unit
mortuary cooling unit
mortuary cooling unit
mortuary cooling unit
Add to favorites
Compare this product

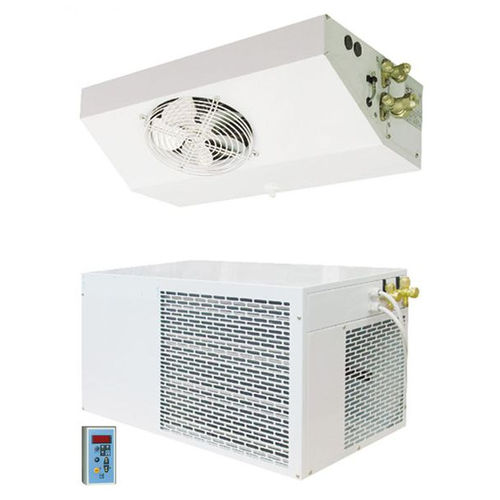

This model consists of a condensing and evaporator unit. The condensing unit has a sturdy housing with low-noise emittance, is fully thermal and equipped with an air-cooled compressor. The safety utilities are in accordance with EN (DIN) standards, VDE regulations and VBG guidelines. Also included is a high-capacity evaporator with automatic defrosting, electrical temperature regulation and a digital temperature indicator with connection, protective plug and 10 m cable connection to the evaporator. Delivery without copper pipelines. Refrigerant: R 134A GWP: 1430 Ambient temperature +5°C up to +45°C TECHNICAL DATA Temperature range:+10°C to -5°C Voltage:400 V / 3 Ph / 50 Hz Refrigeration capcity 0°C inside, +40°C outside:1848 Watt Rated Input (when normally running):2000 Watt Reated input:5.1 Amp Peak current:29 Amp Defrost:electric Defrost heaters:1700 Watt Weight condensing unit:61 kg Weight evaporator:19 kg Filling quantity refrigerant:2.7 kg Compressor: Type:hermetic Normal power:920 Watt Condenser: Air flow:1400 m³/h Evaporator: Air flow:1200 m³/h Air throw:4 m (standard / is affected by many factors) Dimensions evaporator W/D/H:1034 x 410 x 215 mm Dimensions condensing unit W/D/H:820 x 427 x 390 mm
