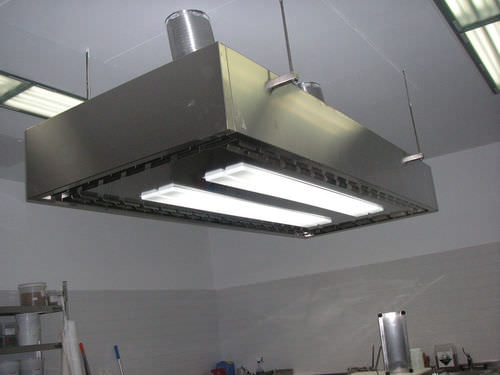

This fresh air hood was particularly designed for the area above the autopsy table. It has a sturdyself-supporting construction and is made of brushed stainless steel (material no. 1.4301 -ANSI 304).
The fresh air hood comprises 4 mountings points to mount it to the ceiling by means of threaded bars or steel ropes. Adjustable air fins guarantee even and drought-free airflow and hence prevent the raise of harmful vapors.Glare-free LED recessed luminaires guarantee for very uniform illumination of the illumination area (half-peak divergence: 2x44°)
The fresh air hood is to be connected to a ventilation system provided bythe customer.
TECHNICAL DATA
Material: brushed stainless steel ( 1.4301 - ANSI 304)
Dimensions W/D/H: 2400 x 1000 x 300 mm
Air capacity: 750 m³/H
Trajectory range: approx. 2.0 m
Loss of pressure: approx. 150 pa
Air conduction: adjustable
Lighting: 2 x 76 Watt
Brightness: approx. 2500 Lux at a distance of 1.5 m
Luminous flux: 2 x 9000 lm
Temeperature of color: approx. 4000° Kelvin
Color index: > 80
Half-peak divergence: 2 x 44°
DALI-dimmable as standard
Service life: 70,000 h
Voltage: 230 Volt / 50 Hz
Exhaust duct diameter: 2 x d= 200 mm
Weight: approx. 120 kg
