Autopsy room air supply system LFZU 10/910
with light

autopsy room air supply system
autopsy room air supply system
autopsy room air supply system
autopsy room air supply system
autopsy room air supply system
autopsy room air supply system
autopsy room air supply system
Add to favorites
Compare this product


Characteristics

Applications
for autopsy rooms
Other characteristics
with light

Description

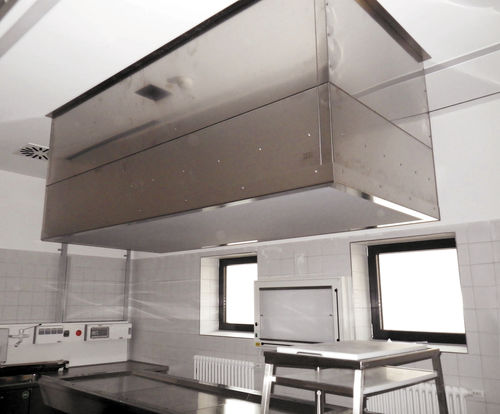

This laminarflow fresh air hood was particularly designed for the area above the autopsy table. It has a sturdy self-supporting construction and is made of brushed stainless steel (material no. 1.4301 – ANSI 304). The fresh air hood comprises 4 mountings points to mount it to the ceiling. Fresh air is being supplied directly onto the autopsy table to prevent harmful vapours from rising. The integrated Special lamps provide evenly distributed light, similar to daylight without blinding or flickering. TECHNICAL DATA Dimensions W/D/H:1000 x 2400 x 400 mm Air capacity:750 m³/H Trajectory range:approx. 2,0 m Loss of pressure:approx. 40 pa Air flow:evenly by means of a laminarflow system Lighting:4 x 58 Watt Brightness:approx. 2000 Lux at a distance of 1,5 m Temeperature of color:approx. 5400° Kelvin Voltage:230 Volt / 1 Ph / 50 Hz Exhaust duct diameter:2 x d= 200 mm
