Mortuary cooling unit SP-KT 130

mortuary cooling unit
mortuary cooling unit
mortuary cooling unit
mortuary cooling unit
Add to favorites
Compare this product


Description

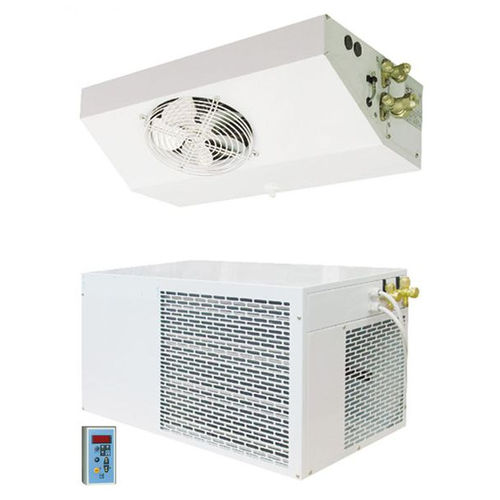

This model consists of a condensing and evaporator unit. The condensing unit has a sturdy housing with low-noise emittance, is fully thermal and equipped with an air-cooled compressor. The safety utilities are in accordance with EN (DIN) standards, VDE regulations and VBG guidelines. Also included is a high-capacity evaporator with automatic defrosting, electrical temperature regulation and a digital temperature indicator with connection, protective plug and 10 m cable connection to the evaporator. Delivery without copper pipelines. Refrigerant: R 134A GWP: 1430 Ambient temperature +5°C up to +45°C TECHNICAL DATA Temperature range:+10°C to -5°C Voltage:230 V / 1 Ph / 50 Hz Refrigeration capcity 0°C inside, +40°C outside:1255 Watt Rated Input (when normally running):700 Watt Reated input:4.3 Amp Peak current:32 Amp Max. current:9.2 Amp Defrost:electric Defrost heaters:450 Watt Weight condensing unit:43 kg Weight evaporator:13 kg Filling quantity refrigerant:2.0 kg Compressor: Type:hermetic Normal power:700 Watt Condenser: Air flow:750 m³/h Evaporator: Air flow:600 m³/h Air throw:4 m (standard / is affected by many factors) Dimensions evaporator W/D/H:614 x 410 x 215 mm Dimensions condensing unit W/D/H:620 x 337 x 357 mm
