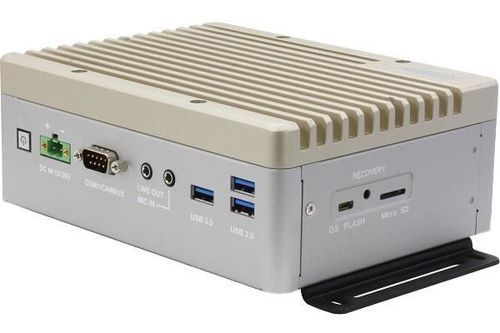

Healthcare facility medical box PC BOXER-8256AI

portableAI-readyfanless

Product overview
Fanless AI edge embedded system powered by NVIDIA Jetson Xavier NX, with 4× HDMI inputs for multi-camera video capture and 2× HDMI outputs for display.

Interfaces

• 4× HDMI 1.4 for video input
• 2× HDMI 2.0 for video output
• 3× USB Type-A (USB 3.2 Gen 1)
• DB9 supporting RS-232/422/485 (configurable) and 1× CANbus
• 1× RJ-45 Gigabit Ethernet
• M.2 M-Key (PCIe x4)
• M.2 B-Key (PCIe x2 + USB 3.0)
• M.2 E-Key (PCIe x1 + USB 2.0)

Downloads
BOXER-8256AI
Category: Datasheet
Language: English
Size: 628 KB
Release Date: 2025-11-12

Technical specifications

• Model: BOXER-8256AI
• Platform: NVIDIA Jetson Xavier NX
• Cooling: Fanless design
• Video input: 4× HDMI 1.4
• Video output: 2× HDMI 2.0
• USB: 3× USB Type-A (USB 3.2 Gen 1)
• Serial/CAN: DB9 (configurable RS-232/422/485) and 1× CANbus
• Networking: 1× RJ-45 Gigabit Ethernet
• Storage/Expansion: M.2 M-Key (PCIe x4), M.2 B-Key (PCIe x2 + USB 3.0), M.2 E-Key (PCIe x1 + USB 2.0)
