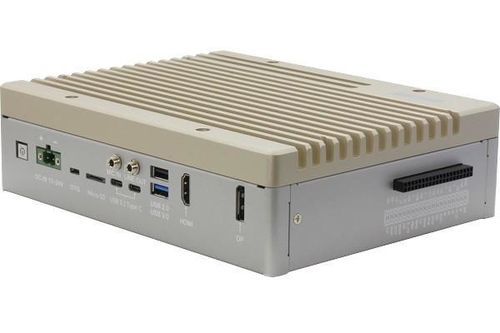

NVIDIA® Jetson AGX Orin™ medical box PC BOXER-8240AI

for healthcare facilitiesAI-readyfanless

Short description
AI edge fanless embedded box PC BOXER-8240AI equipped with NVIDIA AGX Xavier for on-premise AI inference and vision processing in industrial environments. Fanless design suitable for vibration-prone and noise-sensitive installations.

Key features

• 512-core Volta GPU with Tensor Cores for neural network inference
• RJ-45 x 4 with PoE support (802.3af, total 60W)
• DB-9 x 1 supporting RS-232/422/485 serial interfaces
• CANBUS x 1 for vehicle and machine networks
• 40-pin header for custom I/O expansion
• Mic-in and Line-out audio ports
• Storage support: M.2 E key, M.2 M key and SATA

Downloads
BOXER-8240AI | 447 KB | Datasheet | English | Version: - | Release Date: 2025-11-12

Technical specifications

• Platform: AI edge fanless embedded box PC
• Primary accelerator: NVIDIA AGX Xavier
• GPU: 512-core Volta GPU with Tensor Cores
• Network / PoE: 4× RJ-45 ports supporting PoE (802.3af), total 60W
• Serial / Fieldbus: 1× DB-9 (RS-232/422/485), 1× CANBUS
• I/O: 40-pin header; Mic-in; Line-out
• Storage interfaces: M.2 E key, M.2 M key, SATA
• Cooling: fanless design
