CT scan immobilizer P-SS-44

for MRIneckhead

Overview

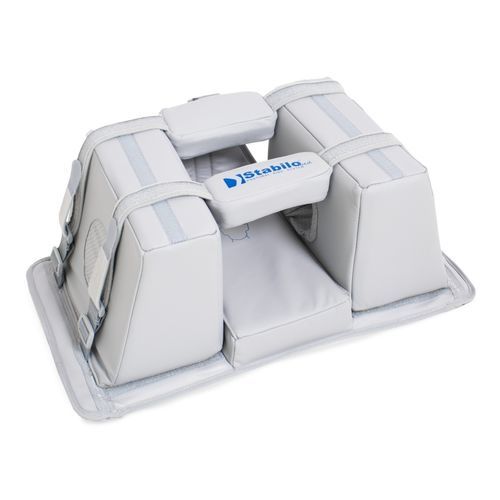

The P-SS-44 head immobilizing pillow is designed for safe immobilization of the head and cervical spine when the patient cannot maintain position independently. Intended for suspected fractures and for use during diagnostic imaging (MRI, CT) because the product contains no aluminium components. Materials are chosen for hygiene, disinfectability and imaging compatibility.

Components

• Rigid base
• Occipital pressure-relieving cushion (VISmemo™ thermoelastic memory foam)
• Two side positioning wedges (soft foam) attached with Velcro
• Circumferential head stabilization straps with pressure-relieving cushions (thermoelastic foam)

Key functional features

• Occipital cushion reduces pressure on the occiput and lowers risk of pressure sores while improving patient comfort
• Adjustable side wedges relieve pressure on bony prominences and adapt to head width/circumference via Velcro
• Perforations in wedges preserve auditory and verbal contact with the patient
• Stabilizing straps prevent uncontrolled involuntary flexion and include cushions to off-load frontal and mandibular prominences
• Universal size: suitable for older children and adults

Size chart
Symbol | Size | A | B | C | D
P-SS-44 | 1 | 52 cm | 27 cm | 21 cm | 16 cm

Structure and materials
Fabrics and foams selected for hygiene, patient comfort and imaging compatibility: PureMed™ cover, AirMesh™ ventilating fabric, off-loading foam, Velcro Strap System™ and VISmemo™ / thermoelastic memory foam in pressure-relieving cushions. The rigid base may include waterproof plywood in its construction.

Filling / Materials table
PureMed™ - antibacterial, easy to disinfect, contains Silver Zeolite; REACH compliant; lightweight and easy to shape.
AirMesh™ - ventilating fabric for body-contact areas to increase comfort and reduce pressure sore risk.
AntySlip™ - non-slip layer preventing cushion movement on the mattress.
VelcroFit™ / Velcro Strap System™ - Velcro components for positioning and combining elements.
Off-loading foam - rigid closed-cell technical foam that regains shape after long-term use.

Permitted disinfecting agents (summary)
Type of active agent or surfactant | Maximum content in the disinfectant
2-propanol | 35%
1-propanol | 25%
Ethanol | 10%
Benzalconium chloride | 0.2%
Glucoprotamin | 25%
Instructions: Spray the surface with disinfectant, leave for required contact time, then rinse with water and dry.

Special features of PureMed™

• Complies with REACH regulation
• Passed cigarette and matchstick tests (non-flammable)
• Free of heavy metals, phthalates, allergens and carcinogens
• OEKO-TEX STANDARD 100 certified
• Waterproof and vapour-permeable (one-way: air migrates from inside to outside)
• Antibacterial and easy to disinfect

Disinfection & maintenance
Clean PureMed™ according to the laundry guide. For coated materials use neutral pH soap (~pH 7) with soft sponge or damp cloth; rub gently and wipe dry. Use a 25% ethanol solution for localized stains if applicable. Do not use domestic cleansers or products recommended for 'eco-leather'.

Usage notes
Designed for immobilization during suspected fractures and for diagnostic imaging (MRI/CT) since no aluminium parts are used. Adjustable components adapt to patient anatomy, swelling or craniofacial injuries.

Technical specifications

• Model / symbol: P-SS-44
• Intended use: head & cervical spine immobilization; MRI and CT compatible
• Available sizes: Universal (size 1 listed)
• Size (size 1) - A: 52 cm; B: 27 cm; C: 21 cm; D: 16 cm
• Occipital cushion: thermoelastic memory foam (VISmemo™)
• Side wedges: soft foam, Velcro-attached, with ear/perforations for communication
• Covers: PureMed™ (antibacterial, waterproof, vapour-permeable)
• Non-slip layer: AntySlip™
• Velcro system: VelcroFit™ / Velcro Strap System™
• Off-loading foam: closed-cell, recycled-structure technical foam
• PureMed™ data: surface weight 200 ± 15 g/m²; PU coating 100%; PES carrier 100%; breaking strength along ≥20 daN/5cm; breaking strength ≥10 daN/5cm; waterproof ≥2000 mm H₂O; vapour permeability ≥300 g/m²/24h
