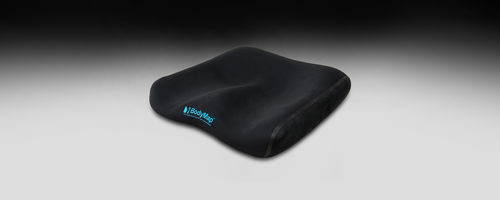

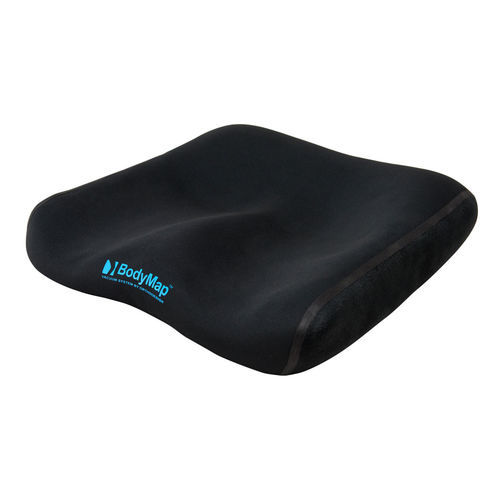

Seat cushion BodyMap® A

pressure reliefpelvic supportprotection

Product description
BodyMap® A is a medical seat cushion designed to stabilize and relieve patients and to support the hips in a wheelchair, positioning chair or ordinary chair. The cushion can be shaped to create an abduction wedge, elevate one hip to maintain spinal alignment, or off-load sensitive areas. Hardness is adjusted progressively using vacuum technology.

Material
The cushion core is made of soft, elastic neoprene foam laminated with high-quality elastic polyester. The foam conforms precisely to the patient's body to increase contact area and reduce pressure, contributing to pressure ulcer prevention.

Optional features
Optionally available with self-adhesive fabric on the bottom for attaching elements with Velcro (stabilization, mounting in stroller/chair/car seat) to prevent cushion movement. Optional cover made of VISmemo™ thermoactive foam is available. Other covers: COTTON COVER, FLEXIBLE COVER, 3D Mesh™ COVER and aerating-massaging pads.

Indications

• Cerebral palsy
• Pressure ulcer prophylaxis
• Excessive muscle tension (hypersthenia)
• Myotonia

Key features

• Durable shaped form
• Easy to model to the required shape
• Mountable in wheelchair, positioning chair, chair or car seat
• Optional VISmemo™ thermoactive cover
• Optional self-adhesive bottom
• Waterproof

Included

• Repair kit (tube of neoprene glue, set of patches and instructions)
• Small vacuum pump (handy for small and medium cushions) — electric and manual pumps available
• Valve with chain
• Service valve to adjust the amount of granules inside the product

Suggested accessories

• Anti-migration pad
• Self-adhesive function (when ordered)
• Granules
• Electric pump or electric dual-function pump
• VISmemo™ cover (including incontinence VISmemo™ cover)
• Incontinence cover
• Aerating-massaging pad
• Elastic cover
• 3D Mesh™ cover
• Stabilizing tape with clamps

Available sizes (table)
Headers: Size | A [cm] | B [cm] | C [cm] | T [cm] | Thickness (neoprene) | Available colors | Suggested accessories (catalog numbers) | VISmemo™ cover / Elastic cover / 3D Mesh™ cover / Aerating pad / Incontinence VISmemo™ cover / Incontinence cover / Anti-migration pad
1 | 27 | 30 | 24 | 7 | 5 mm | color range | PV/BM-A/1 ; PEL/BM-A/1 ; P3D/BM-A/1 ; PMN/BM-A/1 ; PVN/BM-A/1 ; PN/BM-A/1 ; PAM/BM-A/1
2 | 30 | 31 | 30 | 7 | 5 mm | color range | PV/BM-A/2 ; PEL/BM-A/2 ; P3D/BM-A/2 ; PMN/BM-A/2 ; PVN/BM-A/2 ; PN/BM-A/2 ; PAM/BM-A/2
3 | 30 | 35 | 30 | 7 | 5 mm | color range | PV/BM-A/3 ; PEL/BM-A/3 ; P3D/BM-A/3 ; PMN/BM-A/3 ; PVN/BM-A/3 ; PN/BM-A/3 ; PAM/BM-A/3
4 | 37 | 41 | 34 | 7 | 5 mm | color range | PV/BM-A/4 ; PEL/BM-A/4 ; P3D/BM-A/4 ; PMN/BM-A/4 ; PVN/BM-A/4 ; PN/BM-A/4 ; PAM/BM-A/4
5 | 42 | 45 | 40 | 8 | 5 mm | black available | PV/BM-A/5 ; PEL/BM-A/5 ; P3D/BM-A/5 ; PMN/BM-A/5 ; PVN/BM-A/5 ; PN/BM-A/5 ; PAM/BM-A/5
6 | 47 | 45 | 44 | 9 | 5 mm | black available | PV/BM-A/6 ; PEL/BM-A/6 ; P3D/BM-A/6 ; PMN/BM-A/6 ; PVN/BM-A/6 ; PN/BM-A/6 ; PAM/BM-A/6
7 | 51 | 51 | 49 | 9 | 5 mm | black available | PV/BM-A/7 ; PEL/BM-A/7 ; P3D/BM-A/7 ; PMN/BM-A/7 ; PVN/BM-A/7 ; PN/BM-A/7 ; PMA/BM-A/7
Note: Measurements made after air pumped out and cushion initially shaped. Tolerance +/- 2 cm. Dimensions may slightly differ depending on shaping.

Important recommendations
For patients using the cushion continuously for more than two hours, it is recommended to use the VISmemo™ thermoactive cover to minimize risk of pressure ulcers. For patients at high risk consider COTTON, FLEXIBLE or 3D Mesh™ covers and aerating-massaging pads.

Characteristics / Technical specifications

• Product type: medical seat cushion (vacuum system)
• Model / denomination: BodyMap® A
• Core material: soft elastic neoprene foam
• Lamination: high-quality elastic polyester
• Adjustability: vacuum technology allows gradual hardness adjustment
• Optional bottom: self-adhesive fabric for Velcro mounting (ordered as option)
• Optional covers: VISmemo™ thermoactive, COTTON, FLEXIBLE, 3D Mesh™; incontinence versions available
• Waterproof: yes
• Included accessories: repair kit, pump (vacuum pump), valve with chain, service valve
• Available pumps: manual and electric (including electric dual-function pump)
• Available sizes: sizes 1–7 (see size table above), neoprene thickness typically 5 mm (size-dependent: 5–9 mm shown in table)
• Customization: each BodyMap® product can be custom-made
• Purpose: stabilization, positioning, pressure redistribution and pressure ulcer prophylaxis
