Wheelchair pelvic support FP-11

positioningfor disabled personsfoam

Short description

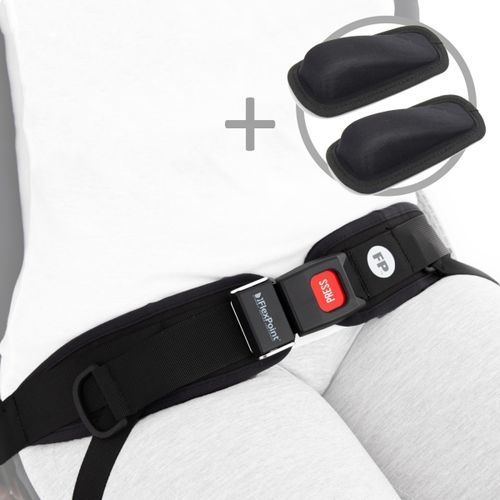

Dynamic 4-point pelvic/hip positioning belt FP-11 by FlexPoint® provides controlled tridimensional pelvic stabilization while reducing pressure on the abdomen. Designed for use on wheelchairs and seating systems for users with increased muscle tone or where pelvic control is required.

Detailed description
The FP-11 combines a DYNAMIC 4-POINT PELVIC BELT and two DYNAMIC RELIEVING ANATOMIC PADS (FP-A-3). This configuration enhances control of pelvic rotation and tilt while minimizing abdominal compression (e.g. bladder area). When used with FP-A-3 pads, the system enables tridimensional control of pelvis position in frontal, sagittal and transverse planes. The anatomic pads are positioned over the anterior superior iliac spine (ASIS) to help maintain a neutral pelvic alignment. Pads fill anatomical gaps, prevent belt riding and excessive local compression, and can be repositioned quickly as needed. The 4-point arrangement maintains pelvis stability during voluntary and involuntary movements such as spasms.

Special advantages

• Relieving anatomic pads FP-A-3: hook-backed for secure attachment and easy repositioning.
• Tridimensional pelvic control: frontal, sagittal and transverse plane adjustment.
• Reduces risk of skin abrasion and pressure sores; suitable for users with increased muscle tone.
• Grip & Pull™ System: large ergonomic D-shaped handle for easier handling by users or caregivers with limited hand function.
• Dynamic construction: soft, elastic relieving elements follow trunk movement and reduce chest/torso pressure.
• Durable, skin-friendly materials with smooth edges; special weave resists loosening.
• Easy to clean: straps and soft components are hand-washable.
• Quick fastening/unfastening without metal parts for safe emergency release.

Size table (FP-11)
Format: Size — A — B — C (max.) — D — E (foam thickness)
FP-11-XS — 2.5 cm — 30 cm — 127 cm — 4.5 cm — 0.7 cm
FP-11-S — 4 cm — 36 cm — 140 cm — 5.5 cm — 0.7 cm
FP-11-M — 4 cm — 46 cm — 152 cm — 6.5 cm — 1.1 cm
FP-11-L — 5 cm — 56 cm — 165 cm — 7.5 cm — 1.1 cm

Dynamic relieving anatomic pads (FP-A-3) — sizes
Format: Size — A — B — C
FP-A-3 MINI — 10 cm — 4.4 cm — 2.6 cm
FP-A-3 MAXI — 11.6 cm — 5.7 cm — 3.2 cm

Accessories / components

• Mounting triangle: for installation of straps on strollers and wheelchairs.
• D-shaped grip: ergonomic handle to assist users with reduced hand function in holding and adjusting the product.
• Strap buckle: secures the user and allows quick unbuckling in emergencies.
• Fastening strap: adjustable to adapt belt length to the user.
• Dynamic relieving pad for safety belts: distributes pressure evenly and relieves sensitive areas.
• Safety buckle with central 'PRESS' button for rapid release.
• Adhesive backing on pads: allows repositioning on the belt; resistant to temperature, water, dust and sweat.

Technical specifications

• Product code: FP-11
• Brand: FlexPoint®
• Type: Dynamic 4-point pelvic/hip positioning belt with anatomic relieving pads
• Medical classification: Class I medical product
• Warranty: 12 months
• Materials: durable, skin-friendly materials with smooth edges; special fiber weave to prevent loosening
• Cleaning: straps and soft elements hand-washable
• Construction: 4-point positioning system with soft elastic and stretchable relieving elements (vertical dynamics)
• Function: tridimensional pelvic position control (frontal, sagittal, transverse) and abdominal pressure relief
• Recommended use: wheelchairs and seating systems; suitable for users with increased muscle tone and for preventing abrasions/pressure ulcers
• Key features: no metal elements, ergonomic D-shaped grip, adhesive-mounted anatomic pads (FP-A-3) for repositioning
