Positioning thigh support FP-23

for wheelchairsfor disabled personsanatomical

Short description
ANATOMIC THIGH ABDUCTION BELTS FlexPoint® are intended for users with increased lower limb muscle tone, spasticity and clasp-knife effect.

Description

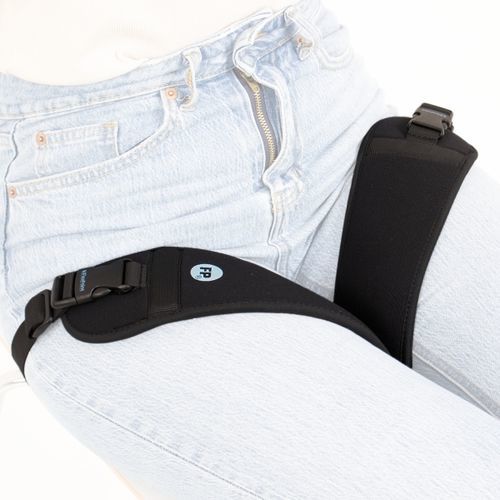

The FP-23 anatomic thigh abduction belts are mounted at the rear sides of the seat. Each belt wraps the leg through the inner thigh and attaches at the lower side of the thigh to the front part of the seat. This configuration increases contact area with the body, improving control of leg movement while allowing full pelvic mobility. The design avoids compression of the lower abdominal region, reducing pressure on the bladder and perineal area. The belts include D-shaped grips to facilitate holding and fastening. An ergonomic strap enables straightforward fastening/unfastening and smooth adjustment of compression for users with limited hand function (e.g., spastic hand).

Safety note
For safety, use the FP-23 anatomic thigh abduction belts in combination with a hip belt.

Special advantages

• Minimizes risk of abrasions and pressure sores — recommended for users with increased muscle tone.
• Grip & Pull™ System — large ergonomic D-shaped grip for easier handling and adjustment by users with impaired hand function.
• Dynamic construction — soft, elastic and stretchable relieving elements follow trunk movement to reduce pressure and increase comfort.
• Durable materials with smooth edges — prevents skin abrasion; special fiber weave resists loosening.
• Easy to clean — straps and soft elements washable by hand (see instructions for maintenance and cleaning).
• Quick and safe fastening/unfastening — no metal elements in vest/belts; components designed for rapid release.
• D-ring buckle — facilitates grasp and fastening for users with limited grip.
• Reduces thigh adduction — maintains lower limb alignment and lowers risk of scissoring.

How to choose size
Measure the distance between the anterior superior iliac spine and the point where the inner thigh contacts the seat to select the correct belt size.

Size table (ANATOMIC THIGH ABDUCTION BELTS FP-23)
Size | Available colors | A | B (min. – max.) | C | D
FP-23-M | black | 44 cm | 90 - 137 cm | 2.5 cm | 9.5 cm
FP-23-L | black | 53 cm | 115 - 163 cm | 4 cm | 12 cm

Accessories / Equipment

• Mounting triangle — for installation of straps and vests on strollers and wheelchairs.
• D-shaped grip — ergonomic shape for easy hold and adjustment.
• Strap buckle — secures the user and allows quick unbuckling in emergencies.
• Fastening strap — adjusts product length to the user’s body.
• Sliding buckle — prevents strap loosening and shifting.
• Dynamic relieving pad for safety belts — ensures even pressure distribution and protects sensitive areas.

Available documents (titles)
EC Declaration; User Manual (EN); Guidebook (EN); User manual - other languages.

Technical characteristics / specifications

• Product code: FP-23
• Brand: FlexPoint®
• Category: Stabilization of lower limbs
• Intended for users with increased muscle tone, spasticity and clasp-knife effect
• Mounting: mounted at rear sides of the seat; fixed to the front part of the seat
• Design: wraps through inner thigh to lower side of thigh to increase contact surface and control leg movement
• No compression of lower abdominal region; reduces pressure on bladder and perineal area
• Equipped with ergonomic D-shaped grips for users with limited hand function
• Construction: soft, elastic, stretchable relieving elements (dynamic construction)
• Materials: durable, smooth edges to prevent skin abrasion; special fiber weave to prevent loosening
• Cleaning: straps and soft elements washable by hand
• Fastening: quick and easy fastening/unfastening; no metal elements in vest/belts
• Recommended to be used together with a hip belt for safety
• Sizes available: FP-23-M, FP-23-L
• Warranty: 12 months (manufacturer's general statement)
• Classification: Class I medical product
