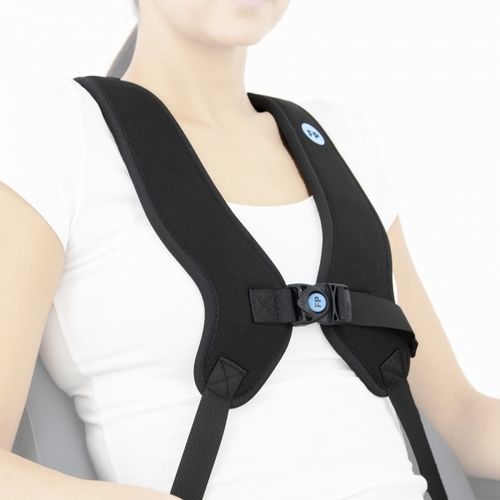

Shoulder orthosis Dynamic 4-point Shoulder H-harness

dynamic

Short description
DYNAMIC 4-POINT SHOULDER H-HARNESS FlexPoint® allows the trunk to be properly positioned while sitting. It perfectly stabilizes the breastbone without limiting the movements of the shoulders. Breastbone stabilization improves upright position and reduces excessive slouched body posture. Upright position improves head control and swallowing and breathing functions.

Description
The chest support has been designed to provide the user with the right balance between freedom of movement and full stabilization. The resilient material of the chest support guarantees better pressure distribution (vertical dynamics) and allows a certain range of free movement of the chest (horizontal dynamics) without limiting breathing functions. Smooth, elastic resistance in the chest area strengthens the breathing muscles. The durable material used for FlexPoint® products is soft and skin-friendly, works with the body and does not cause skin lesions or discomfort. The contact surface of the chest support with the body is greater than in other standard solutions, which guarantees better stabilization. A special front buckle fastening placed under the user’s sternum reduces the risk of strangulation and enables fast removal in emergencies (e.g. seizure); the front buckle also provides smooth width adjustment.

Safety notes
For safety reasons, it is recommended to use the DYNAMIC 4-point Shoulder H-harness together with a pelvic belt or thigh abduction belts. Choose your type of adjustment when ordering: each vest is available with front adjustment (user side) or rear adjustment (caregiver side). Before using the vest, familiarize yourself with the safety rules contained in the instructions for use. Improper use and failure to comply with safety rules may endanger the user’s health and life. ATTENTION! Whenever a chest support, harness or other trunk support is used, a properly adjusted pelvic support should also be worn to prevent sliding from chair/wheelchair.

Special advantages

• Anatomical shape: maintains the chest’s shape, prevents upward shifting when the user leans forward and reduces the risk of pressure on the user’s throat.
• Dynamic fabric’s structure: multi-directional knitted fabric provides proper dynamics and improves breathing; reduces pressure during involuntary movements, myoclonus and spasms.
• Grip & Pull™ System: ergonomic large D-shaped grip facilitates users with hand dysfunctions, making hold and adjustment easy.
• Rear-pull (caregiver’s fitting) and Front-pull (user’s fitting) options available.
• Made of durable materials with smooth edges to prevent abrasion and skin lesions; special fiber structure prevents belts from loosening.
• Easy to clean: straps and soft elements washable by hand.
• Quick release buckles: durable, without metal parts, enabling fast unbuckling in emergency.
• Buckle fastening under sternum reduces strangulation risk and allows fast removal.

Accessories (included / available)

• Mounting triangle: used for installation of straps in belts and vests on strollers and wheelchairs.
• D-shaped grip: ergonomic grip facilitating users with hand dysfunctions.
• Strap buckle: secures the user and can be quickly unbuckled in emergency.
• Fastening strap: adjustable to the user’s body by changing strap length.
• Sliding buckle: prevents the strap from loosening and moving.
• Swivel strap buckle with adjustable width and quick release for anatomical adjustment to chest width.

Size table
To choose the right size measure the shoulder width.
Size | Shoulder width
FP-02-XXS | 21 cm – 24 cm
FP-02-XS | 24 cm – 28 cm
FP-02-S | 28 cm – 33 cm
FP-02-M | 33 cm – 41 cm
FP-02-L | 41 cm – 48 cm
FP-02-XL | 48 cm – 56 cm

Available dimensions / color & measurements
Model | Available color | A | B (min – max) | C
FP-02-XXS | black | 24.5 cm | 11.5 - 19 cm | 2.5 cm
FP-02-XS | black | 28 cm | 12.5 - 20.5 cm | 2.5 cm
FP-02-S | black | 32.5 cm | 14 - 24 cm | 2.5 cm
FP-02-M | black | 37 cm | 15 - 25.5 cm | 2.5 cm
FP-02-L | black | 42.5 cm | 17 - 30 cm | 2.5 cm
FP-02-XL | black | 49 cm | 19 - 32 cm | 2.5 cm

Recommendations / Warnings
Use together with pelvic support to prevent sliding. Ensure correct adjustment type (front or rear) when ordering. Read and follow the instructions for safe use; see the user manual for detailed safety procedures and maintenance.

Caractéristiques / spécifications techniques

• Product name: Dynamic 4-point Shoulder H-harness
• Model designation appearing on page: FP-02
• Category: Torso stabilization
• Medical classification: FlexPoint® products belong to Class I Medical Products group
• Warranty: 12 months
• Materials: durable, skin-friendly, multi-directional knitted dynamic fabric
• Adjustment types: front-pull (user) or rear-pull (caregiver)
• Fastening: front buckle under sternum with quick-release function (no metal parts)
• Dynamics: vertical and horizontal dynamics for pressure distribution and limited restriction of breathing
• Available sizes: XXS, XS, S, M, L, XL (see size table)
• Accessories: mounting triangle, D-shaped grip, strap buckle, fastening strap, sliding buckle, swivel strap buckle
