Electric patient chair BodyMap® AC

manual

Overview

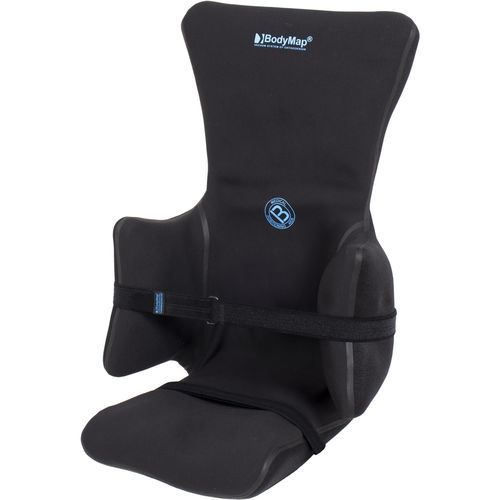

BodyMap® AC is a vacuum positioning chair/cushion with lateral supports and an integrated headrest that functions as both back support and seat contouring. It supports the pelvis, improves posture and provides corrective support for scoliosis and spinal curvature. Wide lateral supports stabilize the trunk while the headrest secures correct head positioning. Cushion shape is adjustable and can be adapted when required.

Materials & construction
The cushion is made of soft elastic neoprene foam laminated with high-quality elastic polyester. Vacuum technology enables progressive adjustment of firmness. Optionally, the cushion can be supplied with a self-adhesive base fabric to attach elements with Velcro and to prevent migration. Available covers: VISmemo™ thermoactive foam, COTTON COVER, FLEXIBLE COVER and 3D Mesh™ COVER. Aerating-massaging pads are available for pressure redistribution.

Indications

• Cerebral palsy
• Scoliosis and spinal curvature
• Pressure ulcer prophylaxis
• Assists in maintaining correct head position
• Excessive muscle tone (hypertonia)
• Myotonia

Key features

• Facilitates safe transport in vehicles and wheelchairs
• Shape retention over time
• Vacuum-adjustable to obtain desired contour and support
• Optional self-adhesive base (must be ordered)
• Supports maintenance of correct posture
• Can be used as a positioning chair or cushion
• Mountable in wheelchairs, positioning chairs, chairs or car seats
• Optional VISmemo™ thermoactive foam cover
• Waterproof

Included (standard)

• Repair kit (tube of neoprene glue, set of patches and instructions)
• Valve with chain
• Service valve (to adjust amount of granules)
• Vacuum pump (hand pump for small/medium cushions). Electric and manual pumps available; dual-function pumps allow precise air evacuation.
• Self-adhesive base available as an ordering option (cannot be added later to standard version)

Suggested accessories

• Anti-migration pad
• Self-adhesive base (if ordered)
• Granules (for fill/adaptability)
• Electric pump
• Electric dual-function pump
• VISmemo™ cover
• Aerating-massaging pad
• Elastic cover
• 3D Mesh™ cover
• Stabilizing tape with clamps
• Non-elastic chest belt
• 4-point safety vest
• 6-point safety vest
• H-harness

Note
Each BodyMap® product can be custom-made. For continuous use over two hours, a VISmemo™ thermoactive cover is recommended to reduce the risk of pressure ulcers. For patients at high risk of pressure sores, consider cushions with COTTON, FLEXIBLE or 3D Mesh™ covers and aerating-massaging pads.

Available sizes (dimensions in cm and accessory codes)
Size | A | A1 | A2 | B | B1 | B2 | B3 | D | T | VISmemo cover | Elastic cover | 3D Mesh cover | Aerating pad | Anti-migration pad | Thickness of neoprene
1 | 38 | 29 | 33 | 90 | 35 | 28 | 28 | 18 | 6 | PV/BM-AC/1 | PEL/BM-AC/1 | P3D/BM-AC/1 | PMN/BM-AC/1 | PAM/BM-AC/1 | 5 mm
2 | 44 | 32 | 35 | 107 | 37 | 30 | 41 | 19 | 6 | PV/BM-AC/2 | PEL/BM-AC/2 | P3D/BM-AC/2 | PMN/BM-AC/2 | PAM/BM-AC/2 | 5 mm
3 | 48 | 37 | 44 | 123 | 44 | 33 | 46 | 24 | 7 | PV/BM-AC/3 | PEL/BM-AC/3 | P3D/BM-AC/3 | PMN/BM-AC/3 | PAM/BM-AC/3 | 5 mm
4 | 56 | 42 | 54 | 137 | 50 | 37 | 50 | 25 | 8 | PV/BM-AC/4 | PEL/BM-AC/4 | P3D/BM-AC/4 | PMN/BM-AC/4 | PAM/BM-AC/4 | 5 mm
5 | 60 | 48 | 63 | 145 | 59 | 37 | 49 | 24 | 9 | PV/BM-AC/5 | PEL/BM-AC/5 | P3D/BM-AC/5 | PMN/BM-AC/5 | PAM/BM-AC/5 | 7 mm
6 | 66 | 50 | 72 | 154 | 61 | 40 | 53 | 24 | 9 | PV/BM-AC/6 | PEL/BM-AC/6 | P3D/BM-AC/6 | PMN/BM-AC/6 | PAM/BM-AC/6 | 7 mm

Videos
See manufacturer videos demonstrating the BodyMap® vacuum system and correct product use (embedded product-related videos).

Technical specifications

• Product: vacuum positioning chair/cushion with lateral supports and integrated headrest
• Material: soft elastic neoprene foam laminated with elastic polyester
• Adjustable firmness via vacuum technology (manual or electric dual-function pumps available)
• Optional self-adhesive base fabric to attach elements with Velcro (must be ordered with product)
• Optional VISmemo™ thermoactive foam cover (recommended for continuous use >2 hours)
• Other cover options: COTTON, FLEXIBLE, 3D Mesh™
• Aerating-massaging pads available for pressure redistribution
• Repair kit included (glue, patches, instructions)
• Valve with chain included; service valve available to adjust granules
• Multiple sizes available (size-specific accessory codes; neoprene thickness 5 mm or 7 mm)
• Custom-made options available
