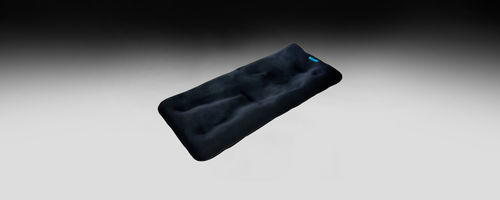

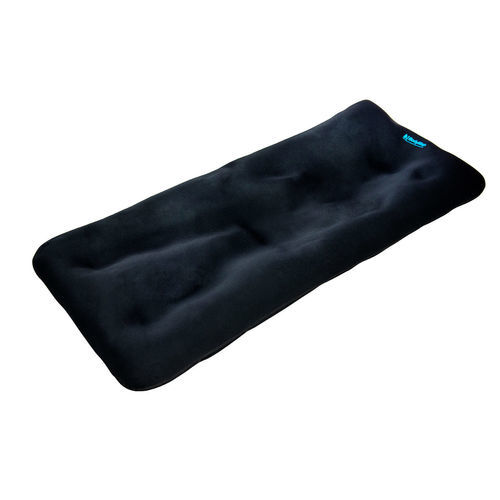

Hospital bed mattress BodyMap® K

fabricvacuumpolyester

Product description
BodyMap® K is a stabilizing vacuum mattress shaped to adapt to the patient’s body. It supports the trunk, pelvis, upper and lower limbs and the head, and is indicated for positioning, stabilization and bedsore prophylaxis. The mattress surface is laminated with elastic polyester and the sides are finished with a self-adhesive fabric enabling attachment of Velcro accessories. BodyMap® products can be customized.

Indications

• Cerebral palsy
• Bedsore prophylaxis
• Incorrect position of trunk, pelvis, limbs or head
• Poor posture
• Excessive muscle tone (hypersthenia)

Key features

• Form retains its shape for a long time
• Easily shaped to the required position
• Optional VISmemo™ thermoactive foam cover
• Self-adhesive sides for Velcro attachment
• Waterproof

Materials and technology
The core is made of soft elastic neoprene granules that conform to the patient to increase contact area and reduce pressure, helping to prevent pressure sores. Vacuum technology allows progressive adjustment of the product hardness. For continuous use over two hours, a VISmemo™ thermoactive cover is recommended to reduce pressure-sore risk. Additional options for high-risk patients include cotton cover, flexible cover, 3D Mesh™ cover and aerating-massaging pads.

Included

• Self-adhesive sides: fabric for Velcro attachment to stabilize the patient
• Large hand pump: efficient manual pump for mattresses and large cushions
• Repair kit: tube of neoprene glue, patch set and instructions
• Valve with chain: prevents loss of small pump valve
• Service valve: facilitates adjustment of granule quantity

Suggested accessories

• Anti-migration pad
• Granules
• Electric pump
• Electric dual-function pump
• VISmemo™ cover (thermo-active foam)
• Aerating-massaging pad
• Elastic cover
• 3D Mesh™ cover
• Non-elastic stabilizing belt
• Stabilizing tape with clamps
• Non-elastic chest belt

Available sizes (dimensions and suggested accessory catalog numbers)
Header: Size | A [cm] | B [cm] | T [cm] | VISmemo™ cover | Elastic cover | 3D Mesh™ cover | Aerating-massaging pad | Thickness of neoprene
1 | 50 | 100 | 10 | PV/BM-K/1 | PEL/BM-K/1 | P3D/BM-K/1 | PMN/BM-K/1 | 7 mm
1+ | 50 | 100 | 20 | PV/BM-K/1+ | PEL/BM-K/1+ | P3D/BM-K/1+ | PMN/BM-K/1+ | 7 mm
2 | 70 | 150 | 10 | PV/BM-K/2 | PEL/BM-K/2 | P3D/BM-K/2 | PMN/BM-K/2 | 7 mm
2+ | 70 | 150 | 20 | PV/BM-K/2+ | PEL/BM-K/2+ | P3D/BM-K/2+ | PMN/BM-K/2+ | 7 mm
3 | 90 | 200 | 15 | PV/BM-K/3 | PEL/BM-K/3 | P3D/BM-K/3 | PMN/BM-K/3 | 7 mm
3+ | 90 | 200 | 30 | PV/BM-K/3+ | PEL/BM-K/3+ | P3D/BM-K/3+ | PMN/BM-K/3+ | 7 mm
4 | 120 | 200 | 15 | PV/BM-K/4 | PEL/BM-K/4 | P3D/BM-K/4 | PMN/BM-K/4 | 7 mm
4+ | 120 | 200 | 30 | PV/BM-K/4+ | PEL/BM-K/4+ | P3D/BM-K/4+ | PMN/BM-K/4+ | 7 mm

Technical specifications

• Model: BodyMap® K
• Type: Stabilizing vacuum mattress
• Core material: soft elastic neoprene granules
• Surface lamination: elastic polyester
• Sides: self-adhesive fabric for Velcro attachment
• Optional covers: VISmemo™ thermoactive foam, cotton cover, flexible cover, 3D Mesh™ cover
• Adjustable hardness: vacuum technology; compatible with manual and electric (dual-function) pumps
• Included accessories: large hand pump, repair kit, valve with chain, service valve
• Available color: black
• Neoprene thickness: 7 mm
• Customization: product can be custom-made
• Intended use: positioning, stabilization and bedsore prophylaxis
