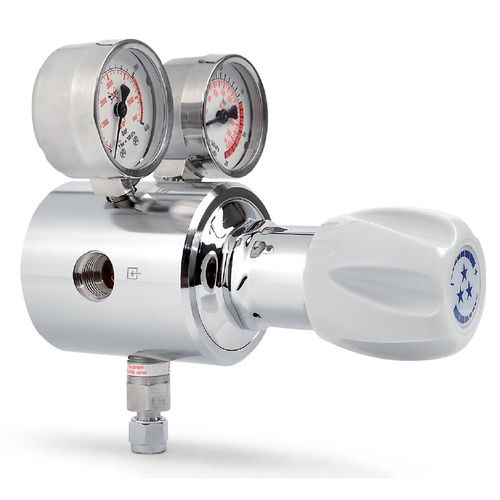

Medical gas pressure regulator S800

laboratorysingle-stagehigh-pressure

S800 high pressure cylinder regulator is designed for purity gases and high-pressure applications requiring high flow and precise outlet pressure, such as laser applications. It is also suited for nuclear research departments where the precision of the outlet pressure and high flow are essential. A cylinder connector is necessary to connect it to the cylinder valve. Key advantages Best-in-class pressure control with Balanced-Valve Technology allowing : Minimization of the effect of inlet pressure fluctuations on outlet pressure The delivery of a very stable outlet pressure and flow even with high flow Dedicated food-grade version with full material compatibility according to EC1935/2004 available Specifications Female ports 16 x 1.336 (inlet) - G3/8 (outlet) or 1/4 NPT (inlet/outlet) Seat seal PCTFE O-ring EPDM Diaphragm AISI 304 / Hastelloy® (25/50 bar) Leak rate - 10-8 M bar l/s Gauge High and low pressure (M10 x 1 or 1/4 NPT) Nominal flow 50/50/50/100 Nm3/h (n2) Oxygen use Brass version: OK Stainless steel version: inlet pressure ≤ 200 bar Temperature range -40°C to +60°C -40°F to +140°F
