Gas pressure regulator TDG250laboratorysingle-stagehigh-pressure
Add to favorites
Compare this product
Characteristics
- Fluid type
- gas
- Applications
- laboratory
- Number of stages
- single-stage
- Features
- high-pressure
- Inlet pressure
200 bar, 300 bar
(2,900.8 psi, 4,351.1 psi)- Output pressure
20 bar
(290.1 psi)- Height
288 mm
(11.3 in)- Weight
4.6 kg
(10.1 lb)- Width
160 mm
(6.3 in)
Description

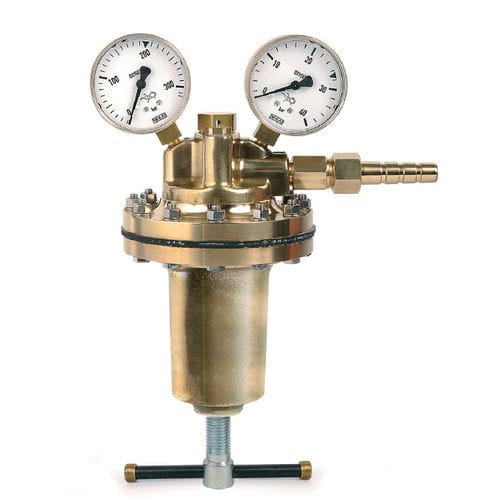

TGD250 is a single stage pressure regulator ideally suited for distribution of gases in industrial applications requiring very high flow like feeding of welding machines. A medical version is available for hospital application.
Key advantages
Exceptionally durable
Medical CE version available
Specifications
Ports - Inlet: 16 x 1.336 (Female)
Outlet: M20 x 1,5 (Male)
Seat seal PCTFE
Diaphragm Butyl
Body material Raw brass
Gauges High and low pressure (M10 x 1)
Oxygen use OK
Leak rate 10-3 m-bar-l-s
Nominal flow 250 Nm3/h (n2)
Temperature range -20°C to +60°C
-4°F to +140°F
