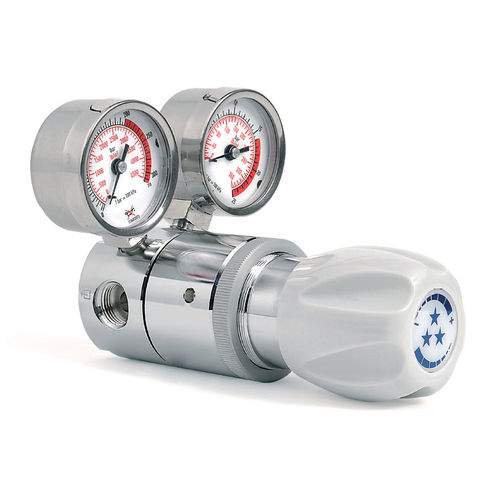

Medical gas pressure regulator S400

laboratorysingle-stagehigh-pressure

S400 high pressure cylinder regulator is particularly suited for put vessels under pressure, leak detection and purge of pipe work. A cylinder connector is necessary to connect it to the cylinder valve. Key advantages Decompresses the downstream regulation system by turning the handwheel counter-clockwise Accurate pressure control for reliable service Connection available for relief valve Panel mouting possible due to the rear threads Can be equipped with a shut off valve at the outlet Specifications Female ports 16 x 1.336 (inlet) - G3/8 (outlet) or 1/4 NPT (inlet/outlet) Seat seal PCTFE O-ring EPDM Piston AISI 316L Leak rate 10-8 M bar l/s Gauges High and low pressure (M10 x 1 or 1/4 NPT) Oxygen use Brass only Nominal flow 30 Nm3/h (n2) Temperature range -40°C to +60°C -40°F to +140°F
