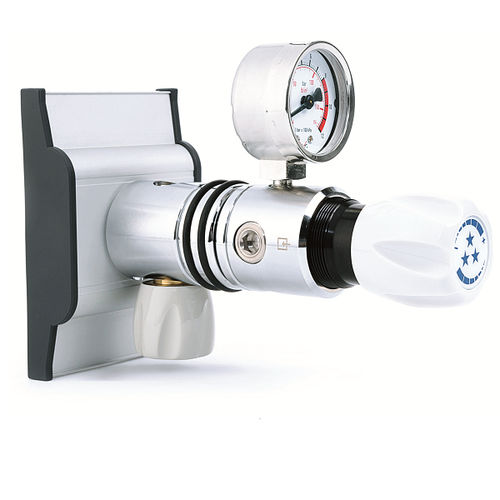

Medical gas pressure regulator LABLINE S22

laboratory

Labline S22 is a terminal modular point of use for specialty gas applications, like laboratories or workshops. It is based on the S20 pressure regulator technology. Key advantages Bellow technology provides a large range of accurate outlet pressures in a compact design Modular concept with 3 different available configurations Must be installed with a flash back arrestor for use with acetylene Acetylene version available (AD) Specifications Female ports F: G 1/4 (inlet-COL version) / G 3/8 or 1/4 NPT (inlet) / G 3/8 or 1/4 NPT (outlet) Seat seal EPDM O-ring EPDM Diaphragm Hastelloy® Bellow Bronze or AISI 316L (SS version) Gauges Low pressure (M10 x 1 or ¼ NPT) Oxygen use inlet pressure ≤ 30 bar max. for brass and stainless steel Nominal flow 2/2,5/3,5 Nm3 /h (N2 ) AD: 1 Nm3 /h Leak rate 10-8 M bar l/s Temperature range -20°C to +60°C -4°F to +140°F
