Medical gas pressure regulator DC50
laboratorymedicalsecond stage

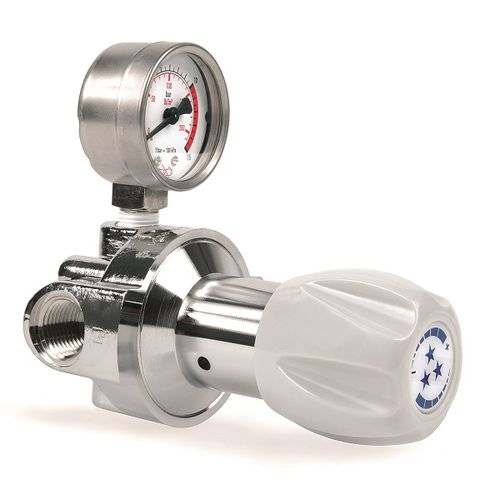

Medical gas pressure regulator - DC50 - ROTAREX MEDITEC - laboratory / medical / second stage

Medical gas pressure regulator - DC50 - ROTAREX MEDITEC - laboratory / medical / second stage - image - 2

Medical gas pressure regulator - DC50 - ROTAREX MEDITEC - laboratory / medical / second stage - image - 3

Add to favorites

Compare this product

Characteristics

Fluid type

for medical gas

Applications

medical, laboratory

Number of stages

second stage

Connection type

in-line, G1/4

Features

low-pressure

Inlet pressure

50 bar
(725.2 psi)

Output pressure

Max.: 40 bar
(580.2 psi)

Min.: 0.8 bar
(11.6 psi)

Height

126 mm
(5 in)

Weight

1.4 kg
(3.1 lb)

Width

131 mm
(5.2 in)

Description

DC50 second stage line pressure regulator is designed for all applications requiring a low pressure with very high flow. It is ideally suited as line regulator in combination either with MOD supply board or CEN switch over board. Key advantages Outstanding pressure consistency with Balanced Valve Technology. Increased useful lifetime and lower ownership cost Must be installed with a flash back arrestor for use with acetylene Acetylene version available (AD) Dedicated food-grade version with full material compatibility according to EC1935/2004 available Specifications Female ports G 1/2 or 1/2 NPT (inlet/outlet) Seat seal EPDM O-ring EPDM Diaphragm EPDM Leak rate 10-3 M bar l/s Gauges Low pressure (G1/4 or 1/4 NPT) Oxygen use OK Nominal flow 150/300/300 Nm3 /h (N2 ) 10 Nm3 /h (AD) Temperature range -20°C to +60°C -4°F to +140°F
