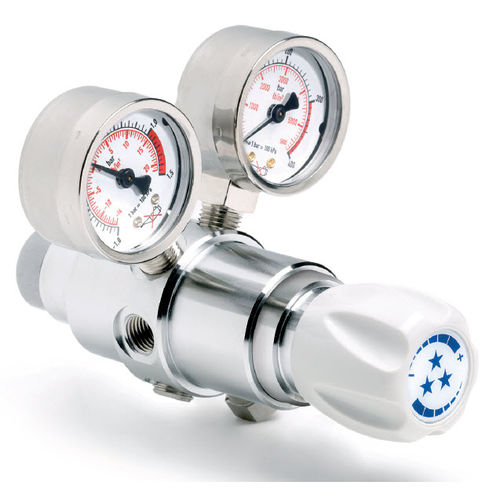

Medical gas pressure regulator DC280

laboratorydual-stagehigh-pressure

DC280 - DC380 high pressure cylinder regulator is designed for pure, inert and corrosive gas applications such as analytical instrumentation (gas chromatography, carrying gas, calibration gas). A cylinder connector is necessary to connect it to the cylinder valve. Key advantages This dual stage regulator is based on the Cartridge seat Technology Accurate pressure control for reliable service Compact, ergonomic and lightweight design Handwheel in compliance with ATEX regulation and easy to clean Could be equipped with a shut off valve Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM) Specifications Female ports 1/4 NPT (inlet/outlet) Seat seal PCTFE O-ring PTFE Diaphragm Hastelloy® Oxygen use OK with brass and stainless steel Leak rate 10-8 m-bar-l-s Nominal flow cv 1/2/10/20/30 Nm3/h (n2) Gauges High and low pressure (1/4 NPT) Temperature range -40°C to +60°C -40°F to +140°F
