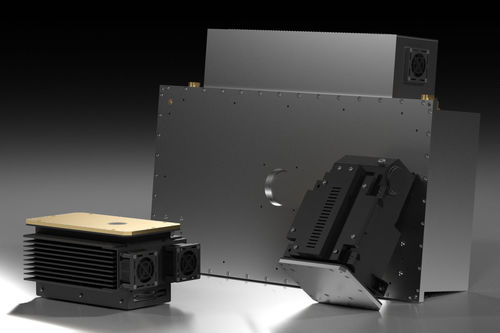

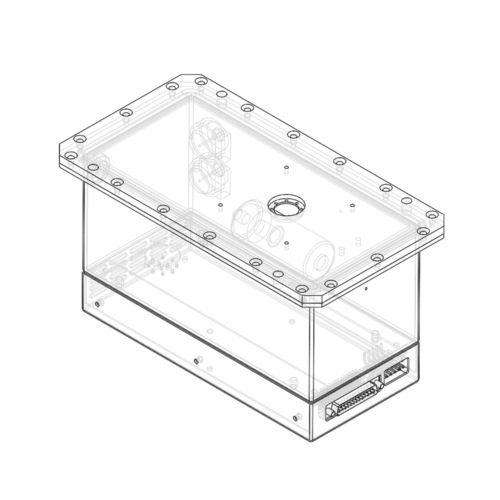

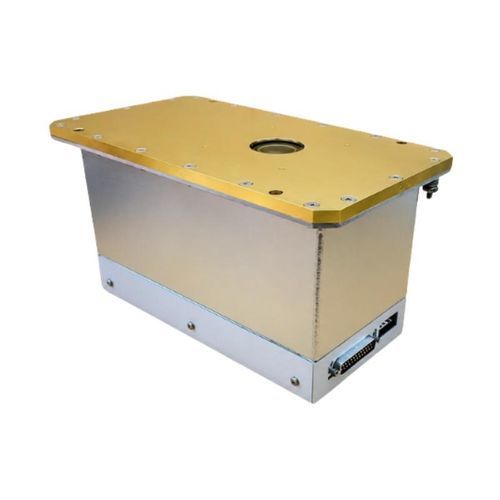

Radiography X-ray generator SB-50 series

equipment-mounted

Product overview
SB-50 family of X-ray generators providing outputs up to 50 kV and up to 50 W. Available in multiple integrated variants and tube options (glass or beryllium). Suitable for compact X-ray imaging systems and equipment integration.

SB-50-150
Max kV: 50 kV
Max mA: 0.15 mA
Max power: 7.5 W
Duty cycle: Continuous
Input power: 24 VDC, 1.5 A
Minimum focal spot: 0.033 mm
X-ray tube: Glass

SB-50-1K
Max kV: 50 kV
Max mA: 1 mA
Max power: 50 W
Duty cycle: Continuous
Input power: 26 VDC, 4 A
Minimum focal spot: 0.033 mm
X-ray tube: Glass

SB-50-1K-IW
Max kV: 50 kV
Max mA: 2 mA
Max power: 50 W
Duty cycle: Continuous
Input power: 28 VDC, 5 A
Minimum focal spot: 0.033 mm
X-ray tube: Glass

SB-50-1K-BW
Max kV: 50 kV
Max mA: 1 mA
Max power: 50 W
Duty cycle: Continuous
Input power: 26 VDC, 4 A
Minimum focal spot: 0.033 mm
X-ray tube: Beryllium

SB-50-1K-BW-IW
Max kV: 50 kV
Max mA: 2 mA
Max power: 50 W
Duty cycle: Continuous
Input power: 28 VDC, 5 A
Minimum focal spot: 0.033 mm
X-ray tube: Beryllium

Related product families (summary)
Family | Max kV | Max Power | Notes
SB-50 | 50 kV | 50 W | Integrated
SB-60 | 60 kV | 20 W | Integrated
SB-80 | 80 kV | 160 W | Integrated
SB-100 | 100 kV | 50 W | Integrated
SB-120 | 120 kV | 48 W | Integrated
SB-160 | 160 kV | 320 W | Integrated
SB-200 | 200 kV | 800 W | Integrated
SB-250 | 250 kV | 750 W | Integrated
XRS-100 | 100 kV | 1.3 kW | Modular
XRS-120 | 120 kV | 3 kW | Modular
XRS-125 | 125 kV | 875 W | Modular
XRS-135 | 135 kV | 675 W | Modular
XRS-140 | 140 kV | 1.05 kW | Modular
XRS-160 | 160 kV | 1 kW | Modular
XRS-180 | 180 kV | 1 kW | Modular
XRS-200 | 200 kV | 1 kW | Modular
XRS-250 | 250 kV | 1 kW | Modular

Features / Technical specifications

• Family: SB-50
• Operating voltage (Max kV): 50 kV
• Available maximum power per variant: 7.5 W (SB-50-150), 50 W (other SB-50 variants)
• Available maximum current per variant: 0.15 mA (SB-50-150), 1 mA (SB-50-1K, SB-50-1K-BW), 2 mA (SB-50-1K-IW, SB-50-1K-BW-IW)
• Duty cycle: Continuous (all listed SB-50 variants)
• Input power requirements: 24 VDC 1.5 A (SB-50-150), 26 VDC 4 A (some 50 W variants), 28 VDC 5 A (higher mA variants)
• Minimum focal spot: 0.033 mm (all listed variants)
• X-ray tube types: Glass and Beryllium options depending on variant
• Product configurations: multiple SB-50 variants including integrated and windowed/beryllium configurations
