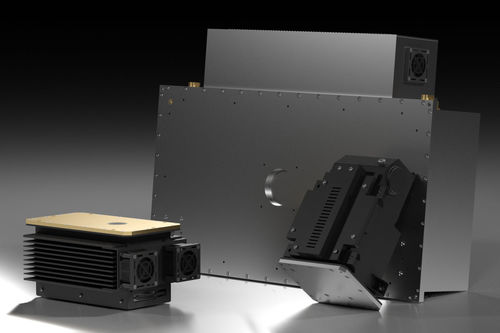

Radiography X-ray generator SB-100 series

equipment-mounted

Overview
Introducing the SB-100 Family of X-ray generators, designed to deliver reliable performance up to 100kV and 50W output, with integrated configurations and tube-material options for industrial imaging applications.

SB-100-500
Max kV: 100kV
Max mA: 0.5mA
Max Power: 50W
Duty Cycle: Continuous
Input Power: 24VDC, 4A
Min Focal Spot: 0.075mm
X-Ray Tube: Glass

SB-100-500-IW
Max kV: 100kV
Max mA: 1mA
Max Power: 50W
Duty Cycle: Continuous
Input Power: 26VDC, 5A
Min Focal Spot: 0.075mm
X-Ray Tube: Glass

SB-100-500-BW
Max kV: 100kV
Max mA: 0.5mA
Max Power: 50W
Duty Cycle: Continuous
Input Power: 24VDC, 4A
Min Focal Spot: 0.075mm
X-Ray Tube: Beryllium

SB-100-500-BW-IW
Max kV: 100kV
Max mA: 1mA
Max Power: 50W
Duty Cycle: Continuous
Input Power: 26VDC, 5A
Min Focal Spot: 0.075mm
X-Ray Tube: Beryllium

Family comparison
Family | Max kV | Max Power | Notes
SB-50 | 50kV | 50W | Integrated
SB-60 | 60kV | 20W | Integrated
SB-80 | 80kV | 160W | Integrated
SB-100 | 100kV | 50W | Integrated

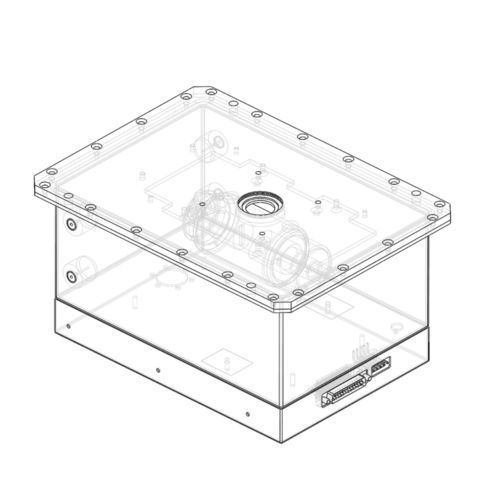

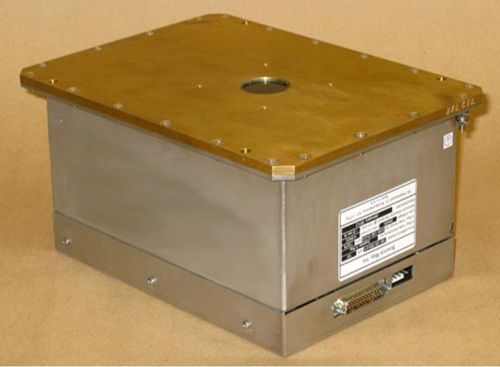

SB-120 | 120kV | 48W | Integrated
SB-160 | 160kV | 320W | Integrated
SB-200 | 200kV | 800W | Integrated
SB-250 | 250kV | 750W | Integrated
XRS-100 | 100kV | 1.3kW | Modular
XRS-120 | 120kV | 3kW | Modular
XRS-125 | 125kV | 875W | Modular
XRS-135 | 135kV | 675W | Modular
XRS-140 | 140kV | 1.05kW | Modular
XRS-160 | 160kV | 1kW | Modular
XRS-180 | 180kV | 1kW | Modular
XRS-200 | 200kV | 1kW | Modular
XRS-250 | 250kV | 1kW | Modular

Technical characteristics / specifications

• Series: SB-100 (family) — designed for up to 100kV and 50W output.
• SB-100-500 — Max 100kV; Max 0.5mA; Max Power 50W; Continuous duty cycle; Input Power 24VDC, 4A; Min focal spot 0.075mm; X-ray tube: Glass.
• SB-100-500-IW — Max 100kV; Max 1mA; Max Power 50W; Continuous duty cycle; Input Power 26VDC, 5A; Min focal spot 0.075mm; X-ray tube: Glass.
• SB-100-500-BW — Max 100kV; Max 0.5mA; Max Power 50W; Continuous duty cycle; Input Power 24VDC, 4A; Min focal spot 0.075mm; X-ray tube: Beryllium.
• SB-100-500-BW-IW — Max 100kV; Max 1mA; Max Power 50W; Continuous duty cycle; Input Power 26VDC, 5A; Min focal spot 0.075mm; X-ray tube: Beryllium.
• Available configurations include integrated variants and options differing by tube material (Glass or Beryllium) and input power/current (24VDC/4A or 26VDC/5A) to support different mA outputs.
