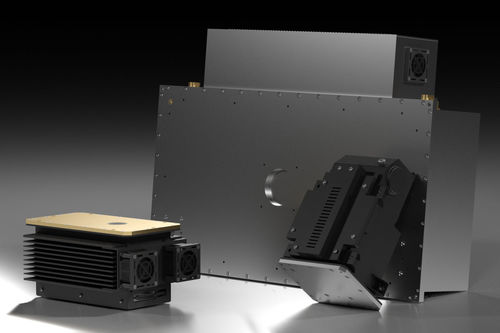

Radiography X-ray generator SB-80 series

equipment-mounted

Overview
The SB-80 family of X-ray generators provides up to 80 kV across multiple models, with power ratings from 16 W to 160 W and focal spot sizes down to 0.015 mm (microfocus). Variants support continuous, pulsed or limited duty cycles and use glass or beryllium X-ray tubes depending on the model.

Models and key specifications

• SB-80-200: Max kV 80 kV; Max mA 0.2 mA; Max Power 16 W; Duty Cycle Continuous; Input Power 24 VDC, 2 A & ±15 VDC, 0.5 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-250: Max kV 80 kV; Max mA 0.25 mA; Max Power 20 W; Duty Cycle Continuous; Input Power 24 VDC, 2 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-250-0.015 (Microfocus): Max kV 80 kV; Max mA 0.25 mA; Max Power 20 W; Duty Cycle Continuous; Input Power 24 VDC, 2 A; Min Focal Spot 0.015 mm; X-ray Tube Glass
• SB-80-250-IW: Max kV 80 kV; Max mA 0.5 mA; Max Power 20 W; Duty Cycle Continuous; Input Power 24 VDC, 3 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-500: Max kV 80 kV; Max mA 0.5 mA; Max Power 40 W; Duty Cycle Continuous; Input Power 24 VDC, 4 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-500-IW: Max kV 80 kV; Max mA 1 mA; Max Power 40 W; Duty Cycle Continuous; Input Power 26 VDC, 5 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-1K: Max kV 80 kV; Max mA 1 mA; Max Power 80 W; Duty Cycle Continuous; Input Power 26 VDC, 5 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-1K-LD: Max kV 80 kV; Max mA 1 mA; Max Power 80 W; Duty Cycle 50%; Input Power 26 VDC, 5 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-1K-P: Max kV 80 kV; Max mA 1 mA; Max Power 80 W; Duty Cycle 50% Pulsed; Input Power 26 VDC, 5 A; Min Focal Spot 0.033 mm; X-ray Tube Glass
• SB-80-1K-BW: Max kV 80 kV; Max mA 1 mA; Max Power 80 W; Duty Cycle Continuous; Input Power 26 VDC, 5 A; Min Focal Spot 0.075 mm; X-ray Tube Beryllium
• SB-80-2K-LD: Max kV 80 kV; Max mA 2 mA; Max Power 160 W; Duty Cycle 20%; Input Power 28 VDC, 8 A; Min Focal Spot 1 mm; X-ray Tube Glass

Technical characteristics

• Family name: SB-80
• Maximum tube voltage (Max kV): up to 80 kV
• Maximum power range across family: 16 W to 160 W
• Maximum current range across family: 0.2 mA to 2 mA (varies by model)
• Duty cycle: Continuous for many models; some variants 50% or 20% depending on configuration
• Input power: nominal DC input ranges indicated per model (examples: 24 VDC, 2 A; 26 VDC, 5 A; 28 VDC, 8 A)
• Min focal spot sizes: from 0.015 mm (microfocus) to 1 mm depending on model
• X-ray tube types: Glass or Beryllium depending on model
• Models in family include: SB-80-200; SB-80-250; SB-80-250-0.015 (Microfocus); SB-80-250-IW; SB-80-500; SB-80-500-IW; SB-80-1K; SB-80-1K-LD; SB-80-1K-P; SB-80-1K-BW; SB-80-2K-LD
