Radiography X-ray generator SB-160

equipment-mounted

Overview

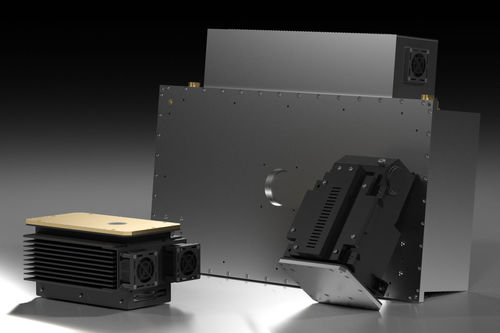

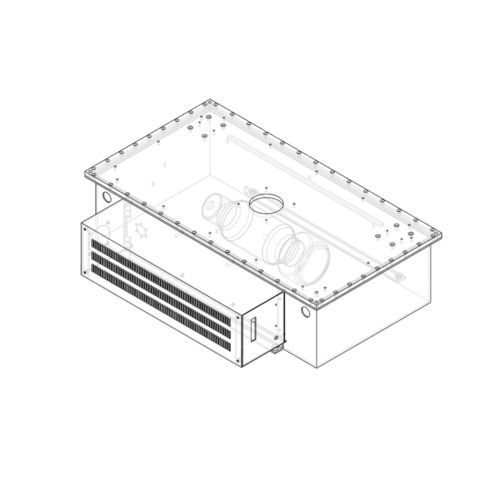

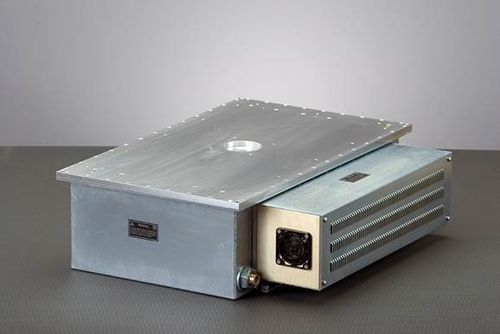

The SB-160 family of integrated X-ray generators delivers up to 160 kV and 320 W output for industrial radiography and X-ray inspection applications. Designed for continuous operation with a compact, integrated architecture suited to inspection systems and laboratory setups.

Featured model — SB-160-2K
Max kV: 160 kV
Max mA: 2 mA
Max Power: 320 W
Duty Cycle: Continuous
Input Power: 120 VAC / 240 VAC
Min focal spot: 0.8 mm
X-ray tube: Glass

SB family summary (selection)

• SB-50 — Max kV: 50 kV — Max Power: 50 W — Notes: Integrated
• SB-60 — Max kV: 60 kV — Max Power: 20 W — Notes: Integrated
• SB-80 — Max kV: 80 kV — Max Power: 160 W — Notes: Integrated
• SB-100 — Max kV: 100 kV — Max Power: 50 W — Notes: Integrated
• SB-120 — Max kV: 120 kV — Max Power: 48 W — Notes: Integrated
• SB-160 — Max kV: 160 kV — Max Power: 320 W — Notes: Integrated
• SB-200 — Max kV: 200 kV — Max Power: 800 W — Notes: Integrated
• SB-250 — Max kV: 250 kV — Max Power: 750 W — Notes: Integrated

Technical specifications

• Family name: SB-160
• Typical maximum voltage (family): 160 kV
• Typical maximum power (family): 320 W
• Featured variant: SB-160-2K
• SB-160-2K — Max kV: 160 kV
• SB-160-2K — Max mA: 2 mA
• SB-160-2K — Max Power: 320 W
• SB-160-2K — Duty Cycle: Continuous
• SB-160-2K — Input Power: 120 VAC / 240 VAC
• SB-160-2K — Min Focal Spot: 0.8 mm
• SB-160-2K — X-ray Tube: Glass
• Product type: Integrated X-ray generators (family)

Typical applications

• Industrial radiography and nondestructive testing (NDT)
• Inline X-ray inspection for manufacturing and quality control
• Material analysis and laboratory X-ray systems

Ordering and options

• Available variants: see SB family selection above
• Input voltage options: 120 VAC or 240 VAC
• Contact supplier for custom integration, mounting and control interfaces
