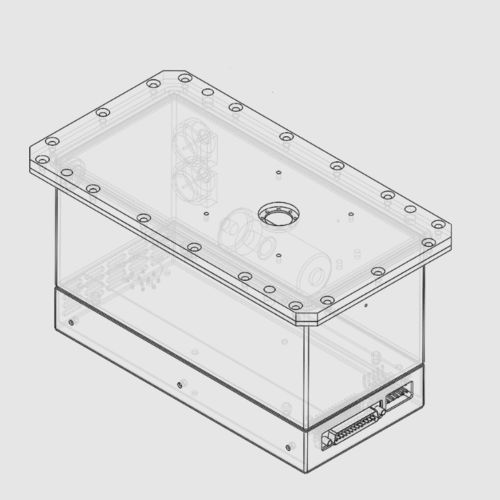

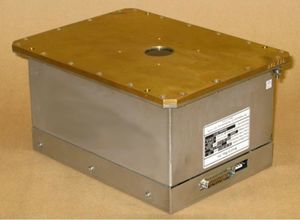

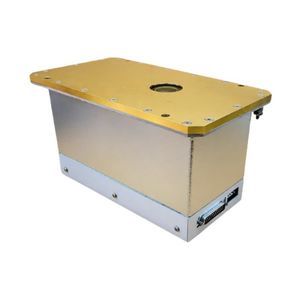

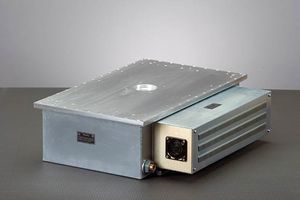

Radiography X-ray generator SB-80-250-0.015

equipment-mounted

Overview

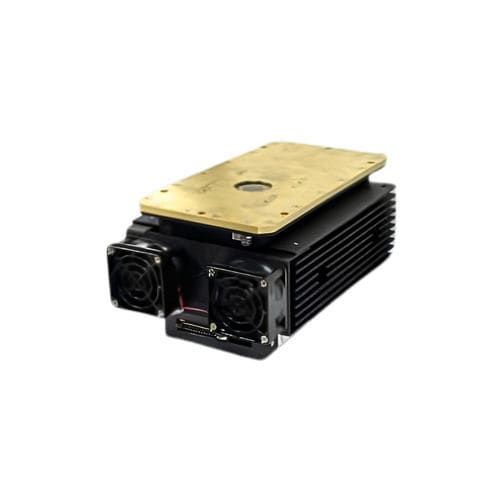

SB-80 is a family of compact X-ray generators offering a maximum tube voltage of 80 kV and family power ratings up to 160 W. Models cover microfocus to higher-power variants, with glass or beryllium tubes and duty cycles for continuous, intermittent or pulsed operation.

SB-80-200
Max kV: 80 kV
Max mA: 0.2 mA
Max Power: 16 W
Duty Cycle: Continuous
Input Power: 24 VDC, 2 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-250
Max kV: 80 kV
Max mA: 0.25 mA
Max Power: 20 W
Duty Cycle: Continuous
Input Power: 24 VDC, 2 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-250-0.015 (Microfocus)
Max kV: 80 kV
Max mA: 0.25 mA
Max Power: 20 W
Duty Cycle: Continuous
Input Power: 24 VDC, 2 A
Min Focal Spot: 0.015 mm
X-Ray Tube: Glass

SB-80-250-IW
Max kV: 80 kV
Max mA: 0.5 mA
Max Power: 20 W
Duty Cycle: Continuous
Input Power: 24 VDC, 3 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-500
Max kV: 80 kV
Max mA: 0.5 mA
Max Power: 40 W
Duty Cycle: Continuous
Input Power: 24 VDC, 4 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-500-IW
Max kV: 80 kV
Max mA: 1 mA
Max Power: 40 W
Duty Cycle: Continuous
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-1K
Max kV: 80 kV
Max mA: 1 mA
Max Power: 80 W
Duty Cycle: Continuous
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-1K-LD
Max kV: 80 kV
Max mA: 1 mA
Max Power: 80 W
Duty Cycle: 50%
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-1K-P
Max kV: 80 kV
Max mA: 1 mA
Max Power: 80 W
Duty Cycle: 50% (pulsed)
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.033 mm
X-Ray Tube: Glass

SB-80-1K-BW
Max kV: 80 kV
Max mA: 1 mA
Max Power: 80 W
Duty Cycle: Continuous
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.075 mm
X-Ray Tube: Beryllium

SB-80-2K-LD
Max kV: 80 kV
Max mA: 2 mA
Max Power: 160 W
Duty Cycle: 20%
Input Power: 28 VDC, 8 A
Min Focal Spot: 1 mm
X-Ray Tube: Glass

Technical specifications

• Family name: SB-80
• Maximum tube voltage (family): 80 kV
• Maximum family power (highest model): 160 W (SB-80-2K-LD)
• X-ray tube types: Glass and Beryllium (model dependent)
• Range of minimum focal spots: 0.015 mm (microfocus) to 1 mm
• Input power examples: 24 VDC (2 A–4 A), 26 VDC (5 A), 28 VDC (8 A) depending on model
• Duty cycles available: Continuous, 50%, 20% or pulsed depending on model
• Representative variants: SB-80-200, SB-80-250, SB-80-250-0.015 (Microfocus), SB-80-250-IW, SB-80-500, SB-80-500-IW, SB-80-1K, SB-80-1K-LD, SB-80-1K-P, SB-80-1K-BW, SB-80-2K-LD
