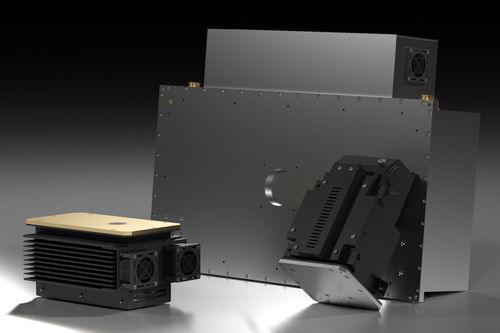

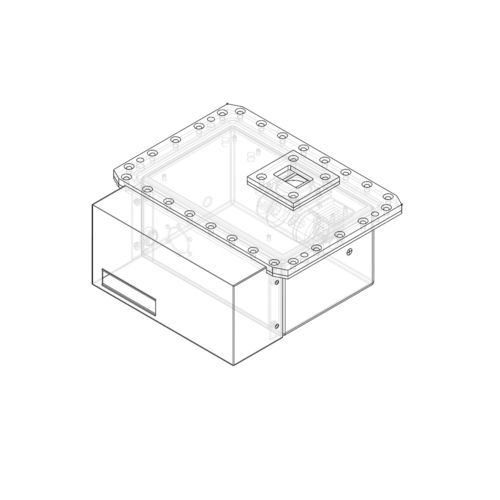

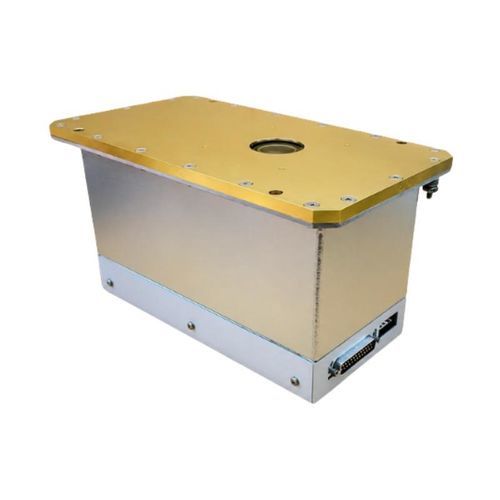

Radiography X-ray generator SB-60 series

equipment-mounted

Overview
The SB-60 family of X-ray generators provides compact, continuous-duty high-voltage sources for industrial inspection and laboratory imaging. Family capability reaches up to 60 kV and up to 20 W output with glass X-ray tubes.

Models

• SB-60-50
  Max kV: 60 kV
  Max mA: 0.05 mA
  Max Power: 3 W
  Duty Cycle: Continuous
  Input Power: 24 VDC, 1 A
  Min Focal Spot: 0.033 mm
  X-ray Tube: Glass
• SB-60-333
  Max kV: 60 kV
  Max mA: 0.333 mA
  Max Power: 20 W
  Duty Cycle: Continuous
  Input Power: 24 VDC, 2 A
  Min Focal Spot: 0.1 mm
  X-ray Tube: Glass

Family comparison
SB-50 — Max kV: 50 kV — Max Power: 50 W — Notes: Integrated
SB-60 — Max kV: 60 kV — Max Power: 20 W — Notes: Integrated
SB-80 — Max kV: 80 kV — Max Power: 160 W — Notes: Integrated
SB-100 — Max kV: 100 kV — Max Power: 50 W — Notes: Integrated
SB-120 — Max kV: 120 kV — Max Power: 48 W — Notes: Integrated
SB-160 — Max kV: 160 kV — Max Power: 320 W — Notes: Integrated
SB-200 — Max kV: 200 kV — Max Power: 800 W — Notes: Integrated
SB-250 — Max kV: 250 kV — Max Power: 750 W — Notes: Integrated
XRS-100 — Max kV: 100 kV — Max Power: 1.3 kW — Notes: Modular
XRS-120 — Max kV: 120 kV — Max Power: 3 kW — Notes: Modular
XRS-125 — Max kV: 125 kV — Max Power: 875 W — Notes: Modular
XRS-135 — Max kV: 135 kV — Max Power: 675 W — Notes: Modular
XRS-140 — Max kV: 140 kV — Max Power: 1.05 kW — Notes: Modular
XRS-160 — Max kV: 160 kV — Max Power: 1 kW — Notes: Modular
XRS-180 — Max kV: 180 kV — Max Power: 1 kW — Notes: Modular
XRS-200 — Max kV: 200 kV — Max Power: 1 kW — Notes: Modular
XRS-250 — Max kV: 250 kV — Max Power: 1 kW — Notes: Modular

Technical specifications

• Family name: SB-60
• Designed maximum high voltage: up to 60 kV
• Designed maximum power: up to 20 W (family capability)
• Duty cycle for listed models: Continuous
• Input power examples: SB-60-50 = 24 VDC, 1 A; SB-60-333 = 24 VDC, 2 A
• Minimum focal spot examples: SB-60-50 = 0.033 mm; SB-60-333 = 0.1 mm
• X-ray tube type for listed models: Glass
• Model emission currents: SB-60-50 = 0.05 mA; SB-60-333 = 0.333 mA

Applications

• Industrial X-ray inspection and non-destructive testing (NDT)
• Micro-focus imaging for electronics and materials analysis
• Laboratory imaging and research setups requiring compact HV sources

Ordering & support
Available options include custom power connectors and focal-spot configurations. Contact sales for compatibility with detectors, integration support and lead times.
