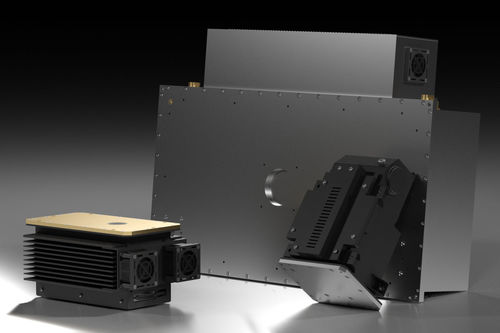

Radiography X-ray generator SB-250 series

equipment-mounted

Product overview
The SB-250 family of X-ray generators provides up to 250 kV and 750 W output for industrial inspection and laboratory applications, available in integrated and modular configurations.

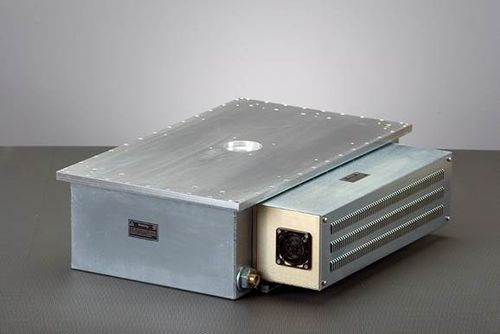

Featured model
SB-250-3K specifications:
Max kV: 250 kV
Max mA: 3 mA
Max power: 750 W
Duty cycle: Continuous
Input power: 120 VAC / 240 VAC
Minimum focal spot: 1.5 mm
X-ray tube: Glass

Family comparison
SB-50 — 50 kV — 50 W — Integrated
SB-60 — 60 kV — 20 W — Integrated
SB-80 — 80 kV — 160 W — Integrated
SB-100 — 100 kV — 50 W — Integrated
SB-120 — 120 kV — 48 W — Integrated
SB-160 — 160 kV — 320 W — Integrated
SB-200 — 200 kV — 800 W — Integrated
SB-250 — 250 kV — 750 W — Integrated
XRS-100 — 100 kV — 1.3 kW — Modular
XRS-120 — 120 kV — 3 kW — Modular
XRS-125 — 125 kV — 875 W — Modular
XRS-135 — 135 kV — 675 W — Modular
XRS-140 — 140 kV — 1.05 kW — Modular
XRS-160 — 160 kV — 1 kW — Modular
XRS-180 — 180 kV — 1 kW — Modular
XRS-200 — 200 kV — 1 kW — Modular
XRS-250 — 250 kV — 1 kW — Modular

Technical specifications

• Family maximum capability: up to 250 kV and 750 W output
• Example model (SB-250-3K) — Max kV: 250 kV
• Example model (SB-250-3K) — Max mA: 3 mA
• Example model (SB-250-3K) — Max power: 750 W
• Duty cycle: Continuous
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 1.5 mm
• X-ray tube type: Glass
• Product family includes Integrated (SB series) and Modular (XRS series) configurations with varying power and kV ratings
