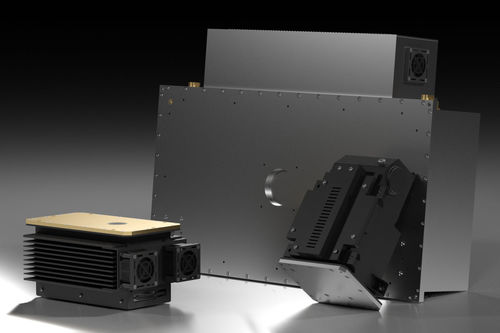

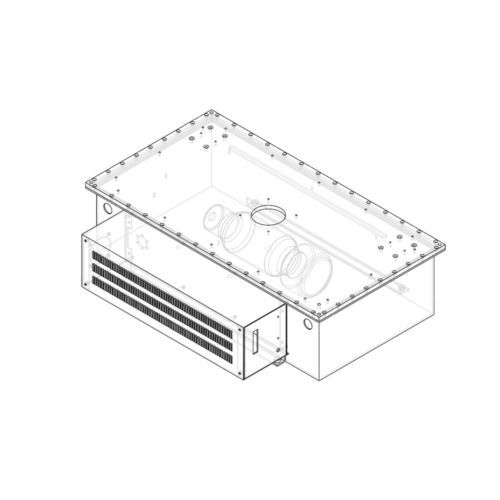

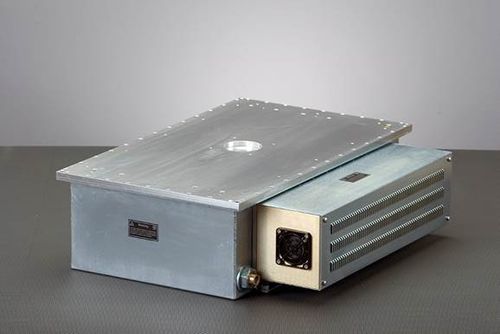

Radiography X-ray generator SB-200

equipment-mounted

Overview
The SB-200 family of industrial X-ray generators delivers up to 200 kV and 800 W output for non-destructive testing and inspection applications. Units are suitable for continuous-duty operation and support dual input voltage for integration into existing test benches and inspection systems.

Included model

• SB-200-4K

SB-200-4K — Key specifications

• Maximum voltage (Max kV): 200 kV
• Maximum tube current (Max mA): 4 mA
• Maximum power: 800 W
• Duty cycle: Continuous
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 1.5 mm
• X-ray tube type: Glass

Related product families (excerpt)

• SB-50 — 50 kV — 50 W
• SB-60 — 60 kV — 20 W
• SB-80 — 80 kV — 160 W
• SB-100 — 100 kV — 50 W
• SB-120 — 120 kV — 48 W
• SB-160 — 160 kV — 320 W
• SB-200 — 200 kV — 800 W
• SB-250 — 250 kV — 750 W
• XRS-100 — 100 kV — 1.3 kW
• XRS-120 — 120 kV — 3 kW
• XRS-125 — 125 kV — 875 W
• XRS-135 — 135 kV — 675 W
• XRS-140 — 140 kV — 1.05 kW
• XRS-160 — 160 kV — 1 kW
• XRS-180 — 180 kV — 1 kW
• XRS-200 — 200 kV — 1 kW
• XRS-250 — 250 kV — 1 kW

Technical specifications

• Model: SB-200-4K
• Maximum voltage: 200 kV
• Maximum tube current: 4 mA
• Maximum power: 800 W
• Duty cycle: Continuous
• Input power: 120 VAC / 240 VAC
• Minimum focal spot: 1.5 mm
• X-ray tube type: Glass
