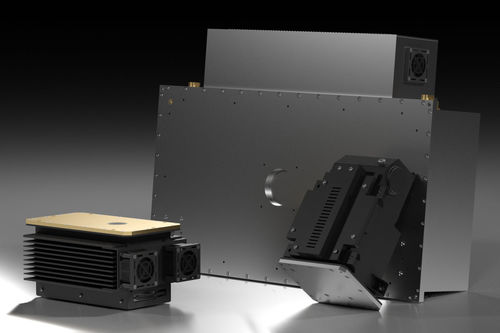

Radiography X-ray generator SB-120 series

equipment-mounted

Overview
The SB-120 family comprises integrated X-ray generators intended for industrial imaging and inspection systems. Models provide up to 120 kV and up to 48 W output, with a minimum focal spot of 0.075 mm and glass X-ray tubes. Duty cycle and input power vary by model to support continuous or pulsed operation.

Variants and technical tables
SB-120-350
Max kV: 120 kV
Max mA: 0.35 mA
Max Power: 42 W
Duty Cycle: Continuous
Input Power: 24 VDC, 4 A
Min Focal Spot: 0.075 mm
X-ray Tube: Glass

SB-120-350-IW
Max kV: 120 kV
Max mA: 0.7 mA
Max Power: 42 W
Duty Cycle: Continuous
Input Power: 26 VDC, 5 A
Min Focal Spot: 0.075 mm
X-ray Tube: Glass

SB-120-400-P
Max kV: 120 kV
Max mA: 0.4 mA
Max Power: 48 W
Duty Cycle: Pulsed
Input Power: 26 VDC, 4 A
Min Focal Spot: 0.075 mm
X-ray Tube: Glass

Related product families (summary)
Family | Max kV | Max Power
SB-50 | 50 kV | 50 W
SB-60 | 60 kV | 20 W
SB-80 | 80 kV | 160 W
SB-100 | 100 kV | 50 W
SB-120 | 120 kV | 48 W
SB-160 | 160 kV | 320 W
SB-200 | 200 kV | 800 W
SB-250 | 250 kV | 750 W
XRS-100 | 100 kV | 1.3 kW
XRS-120 | 120 kV | 3 kW
XRS-125 | 125 kV | 875 W
XRS-135 | 135 kV | 675 W
XRS-140 | 140 kV | 1.05 kW
XRS-160 | 160 kV | 1 kW
XRS-180 | 180 kV | 1 kW
XRS-200 | 200 kV | 1 kW
XRS-250 | 250 kV | 1 kW

Technical specifications

• Product family: SB-120
• Family maximum rating: up to 120 kV and up to 48 W output (model-dependent)
• Included models: SB-120-350, SB-120-350-IW, SB-120-400-P
• Max mA range across models: 0.35 mA – 0.7 mA
• Max power per model: 42 W (SB-120-350, SB-120-350-IW), 48 W (SB-120-400-P)
• Duty cycle: Continuous (SB-120-350, SB-120-350-IW) or Pulsed (SB-120-400-P)
• Input power variants: 24 VDC 4 A; 26 VDC 4 A; 26 VDC 5 A (model dependent)
• Minimum focal spot: 0.075 mm (all listed models)
• X-ray tube type: Glass (all listed models)
• Devices intended for integration into industrial X-ray systems
