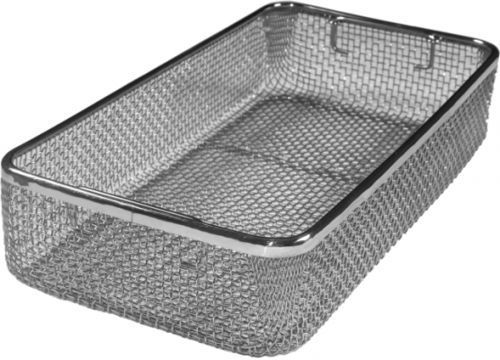

Surgical instrument sterilization tray YWD-1050

for dental instrumentsfor instrumentssilicone

Product
Wire mesh tray YWD-1050 designed to contain and protect surgical and dental instruments during cleaning, sterilization, storage and transport. Mesh size approximately 5 x 5 mm. Compatible with steam and gas plasma sterilization. Dimensions: 540 x 255 x 50 mm.

Applications
Suitable for hospitals, clinics, dental practices, sterilization departments and medical device manufacturers. Ideal for handling fine surgical instruments and minimizing instrument contact during processing.

Features

• Manufactured from medical-grade 304 stainless steel (non-corrosive)
• Precision production: CNC laser cutting, nibbling and CNC bending
• Electropolished surface finish for optimal cleaning and corrosion resistance
• Woven/knitted spot-welded wire mesh available in 1.2 mm, 1.0 mm and 0.75 mm diameters
• Mesh size ≈ 5 x 5 mm allowing maximum flow of sterilization agents, steam and heat
• All exposed edges dulled and burr-free to protect staff and sterile wraps
• Stackable baskets; available with drop or holding handles
• Optional silicone or metal inserts, stands and cradles for instrument organization and protection
• Single, double and detention frame lids available; optional locks
• High resistance to corrosion and mechanical damage; acid-resistant steel construction
• Durability: designed to withstand 1000+ sterilization cycles without loss of shape or function

Material / Finish
Material: 304 stainless steel (medical grade)
Surface finish: mirror, luster, satin, brushed and colored options
Cutting: laser cut
Stackable: all trays stackable
Mesh type: woven
Mesh size: 5 x 5 mm
Mesh wire example: 1.2 mm (18-swg)
Corner: rounded
Polish: electropolish protection strip

Available sizes

• YWD-1050 | 540 x 255 x 50 mm
• YWD-1070 | 540 x 255 x 70 mm
• YWD-1100 | 540 x 255 x 100 mm
• YWD-2050 | 485 x 255 x 50 mm
• YWD-2070 | 485 x 255 x 70 mm
• YWD-2100 | 485 x 255 x 100 mm
• YWM-8501 | 540 x 250 x 50 mm
• YWM-8930 | 560 x 375 x 70 mm
• YWM-9000 | 480 x 250 x 50 mm
• YWM-9003 | 480 x 300 x 50 mm
• YWM-9010 | 480 x 250 x 70 mm
• YWM-9020 | 480 x 250 x 100 mm
• YWM-9030 | 480 x 250 x 60 mm

Technical specifications

• Material: 304 stainless steel (medical grade)
• Mesh size: ~5 x 5 mm
• Wire diameter options: 1.2 mm, 1.0 mm, 0.75 mm
• Example dimensions (YWD-1050): 540 x 255 x 50 mm
• Surface finish options: mirror, luster, satin, brushed, colored
• Manufacture: CNC laser cut, nibbling, CNC bending; electropolished
• Sterilization compatibility: steam and gas plasma
• Stackable design with optional lids and handles
• Silicone inserts/stands available for instrument protection
• Expected durability: 1000+ sterilization cycles
