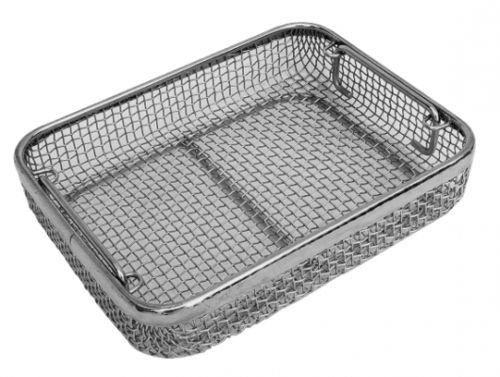

Instrument sterilization basket YWD-4089

for surgical instrumentswirestainless steel

Item Name
Wire mesh tray YWD-4089

Item Description / Uses
Designed to contain a wide variety of instruments during washing, sterilization, storage, and transport. Mesh size is approximately 5 mm x 5 mm. Compatible with steam and gas plasma sterilization. Suitable for handling, washing, sterilizing, and storing small microdissection and surgical instruments. Provides structural integrity, protects instruments, and optimizes washing and sterilization exposure.

Features

• Manufactured from 304 stainless steel (medical grade); some accessories may use 200 or 400 series where applicable.
• Production: CNC laser cutting, nibbling, CNC bending; electropolished finish.
• Wire mesh: knitted/woven spot-welded solid wire mesh available in 1.2 mm, 1.0 mm and 0.75 mm diameters.
• Burr-free construction: all exposed edges rounded to prevent injury and protect wraps.
• Long service life: withstands 1000+ sterilization cycles without loss of shape or function.
• High-flow design: maximizes flow of sterilizing agents, steam and heat; side perforations for improved steam penetration.
• Stackable for efficient storage and transport.
• Optional accessories: drop and holding handles; single-frame, double-frame and detention-frame lids with optional locks.
• Instrument management: silicone stands/cradles and silicone or metal inserts in various colors to secure instruments during processing.
• Smooth rounded corners; high resistance to corrosion and mechanical damage; trays made of acid-resistant steel.

Size (variants)
YWM-8000 | 350 x 160 x 50 mm
YWM-8005 | 260 x 190 x 50 mm
YWM-8050 | 380 x 250 x 50 mm
YWM-8100 | 380 x 190 x 85 mm
YWM-9103 | 300 x 250 x 50 mm
YWM-9107 | 250 x 190 x 50 mm

Additional Product Notes
Cutting method: laser cut. Surface finishes available: mirror, luster, satin, brushed and colored options. Trays support easy maintenance and repair. Each tray passes rigorous quality testing parameters.

Technical specifications

• Material: 304 stainless steel (medical grade); some parts may use 200 or 400 series where applicable.
• Mesh size: approx. 5 mm x 5 mm.
• Wire diameters available: 1.2 mm, 1.0 mm, 0.75 mm.
• Surface finish options: mirror, luster, satin, brushed and colored.
• Manufacturing processes: CNC laser cutting, nibbling, CNC bending; electropolished.
• Compatibility: steam sterilization and gas plasma sterilization.
• Stackable: yes.
• Handles: drop and holding handle options available.
• Lid options: single-frame, double-frame, detention-frame lids with optional locks.
• Instrument management: silicone & metal inserts, silicone stands/cradles to minimize contact and secure instruments.
