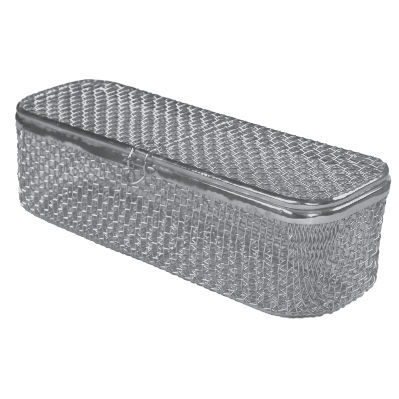

Instrument sterilization tray YWD-4081

for surgical instrumentsfor dental instrumentsperforated

Item Name
Wire Mesh Sterilization Tray

Item Description
Designed to contain a wide variety of surgical and microdissection instruments during washing, sterilization, storage and transport. Mesh size is approximately 5 mm x 5 mm. Compatible with steam and gas plasma sterilization. SteriTrays sterilization trays and wire baskets provide consistent structural integrity for handling, washing, sterilizing and storing small surgical and dental instruments.

Features

• Manufactured from 304 medical-grade stainless steel (non-corrosive, acid-resistant).
• Wire mesh constructed by knitted/woven spot-welded solid wire; mesh size ≈ 5 mm × 5 mm.
• Available wire diameters: 1.2 mm, 1.0 mm and 0.75 mm.
• Produced with CNC laser cutting, nibbling and CNC bending for precision fit.
• Electropolished finish; surface options: mirror, luster, satin, brushed or colored.
• Burr-free edges and smooth rounded corners to protect wraps and reduce injury risk.
• Stackable design; available with drop and holding handles.
• Optional lids: single frame, double frame or detention frame with optional locks.
• Compatible with automatic washers; baskets allow maximum flow of sterilants, steam and heat.
• Silicone stands/cradles and instrument inserts (silicone or metal) available for secure instrument management.
• Durable: designed to withstand 1000+ sterilization cycles across common processes without loss of shape or function.

Size / Table
YWM-9002 | 355 x 100 x 90 mm

Other
Surface Finish: Mirror, luster, satin, brushed and colored
Cutting: Laser Cut
Stackable: All trays are stackable

Technical specifications

• Commercial model: YWD-4081
• Alternate/reference size code: YWM-9002
• Dimensions: 355 x 100 x 90 mm
• Material: 304 medical-grade stainless steel
• Wire mesh: knitted/woven spot-welded solid wire; mesh ≈ 5 mm x 5 mm
• Wire diameters: 1.2 mm, 1.0 mm, 0.75 mm
• Surface finish: Electropolished; mirror/luster/satin/brushed/colored options
• Manufacturing: CNC laser cutting, nibbling, CNC bending
• Compatibility: Steam and gas plasma sterilization; suitable for automatic washing
• Accessories/options: Silicone stands/cradles, silicone & metal inserts, drop/holding handles, lids with optional locks
• Design features: Burr-free edges, smooth round corners, side perforations for steam penetration, stackable
